Product Summary

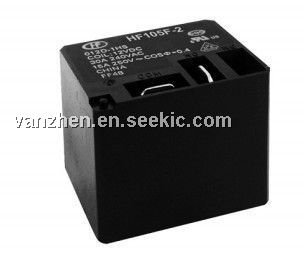

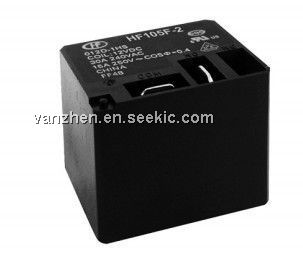

The HF105F-2 is a miniature high power relay.

Parametrics

HF105F-2 absolute maximum ratings: (1)Contact arrangement: 1A, 2B, 1C; (2)Contact resistance: 50mΩ (at 1A 6VDC); (3)Max. switching capacity: 7200VA/560W; (4)Max. switching current: 40A/15A; (5)Max. switching voltage: 277VAC/28VDC.

Features

HF105F-2 features: (1)30A switching capability; (2)Heavy load up to 7,200VA; (3)PCB coil terminals, ideal for heavy duty load; (4)Plastic sealed and dust protected types available; (5)UL insulation system: Class F available; (6)Environmental friendly product (RoHS compliant); (7)Outline Dimensions: (32.4 x 27.5 x 27.8)mm.

Diagrams

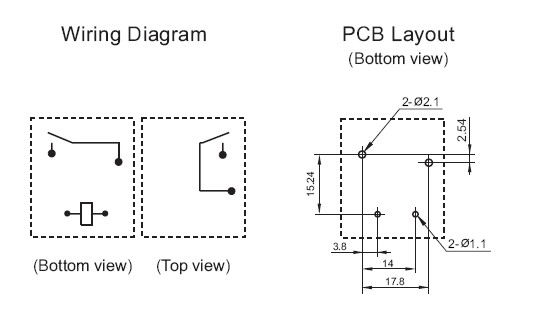

HF105F-2 block diagram
