Product Summary

The G8QE-1A-12VDC is a miniature automotive PCB relay. Applications of the G8QE-1A-12VDC include: Power windows/power door lock, Smart junction box and module applications, Seat adjustment, Sunroof, Horn, Fog lamp, Heated exterior side mirrors, Wiper motor, Washer pump.

Parametrics

G8QE-1A-12VDC specifications: (1)Max. switching current: 30 A; (2)Max switching voltage: 16 V; (3)Max. carry current: 30 A (at 20℃ for 1 hour); (4)Min. carry current: 100 mA; (5)Contact material: Silver-tin oxide.

Features

G8QE-1A-12VDC features: (1)SPDT contact form (1C); (2)Fully sealed construction; (3)Fully automated assembly; (4)G8QN suitable for reverse motor applications (2 relays); (5)High performance PCB relay; (6)Made in USA.

Diagrams

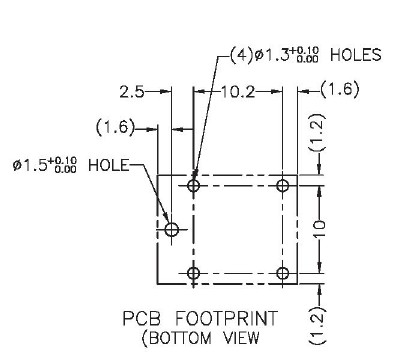

G8QE-1A-12VDC pin connection
