Product Summary

The CPC5602CTR is an N-channel depletion mode fied effect transistor (FET) that utilizes proprietary third generation vertical DMOS process of clare. The CPC5602CTR has a typical on-resistance of 8Ω,a reakdown voltage exceeding 350V and is available in an SOT-223 package. Applications of the CPC5602CTR include: Support component for LITELINK data access arrangement (DAA) , normally-on switch, telecom and constant current source.

Parametrics

CPC5602CTR absolute maximum ratings: (1) VDSS Voltage: 350V; (2) Total package dissipation: 2.5W; (3) Operational temperature: -40 to +85°C; (4) Storage temperature: -40 to +125°C; (5) Soldering temperature: +220°C.

Features

CPC5602CTR features: (1) Low on resistance 10 ohms; (2) High input impedance; (3) Low input and output leakage; (4) Small package size SOT-223; (5) PC Card (PCMCIA) compatible; (6) PCB space and cost savings.

Diagrams

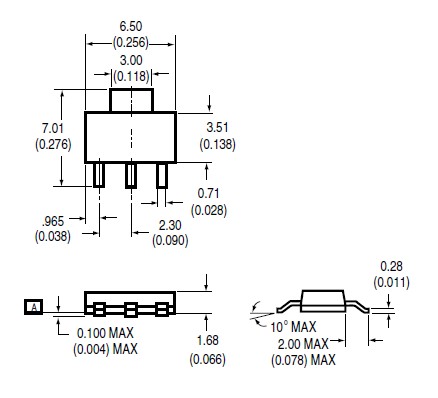

CPC5602CTR pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CPC5602CTR
CPC5602CTR
Clare
MOSFET N Channel Depletion Mode FET, T/R
Data Sheet
Negotiable
