Product Summary

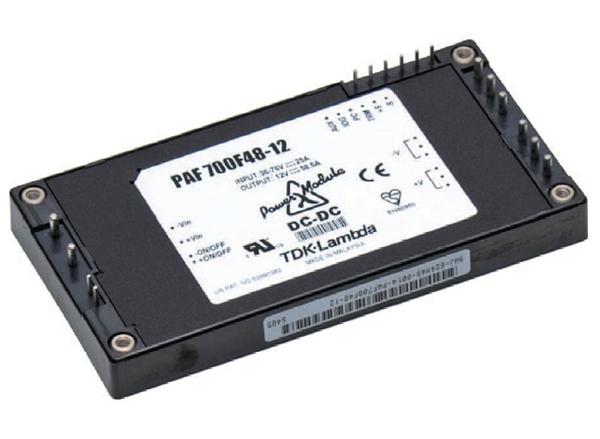

The PAF700F48-12/T is a high power DC-DC module.
Parametrics
PAF700F48-12/T absolute maximum ratings: (1)Nominal Output Voltage: 28 V; (2)Output Current (Max): 25 A; (3)Max Output Power: 700 W; (4)Efficiency (Typ): 91 %; (5)Input Voltage range: 36 to 76 V; (6)Operating temperature: -40°C ~ +100°C.
Features
PAF700F48-12/T features: (1)Full-brick type DC-DC Power Module suitable for information and telecommunication equipment; (2)Intensive control circuit, Zero Voltage Switching (ZVS); (3)High efficiency, low noise, high power density, good cost performance; (4)Maximum output power density: up to 5.53W/cm3; (5)Wide input voltage range: DC36-76V.

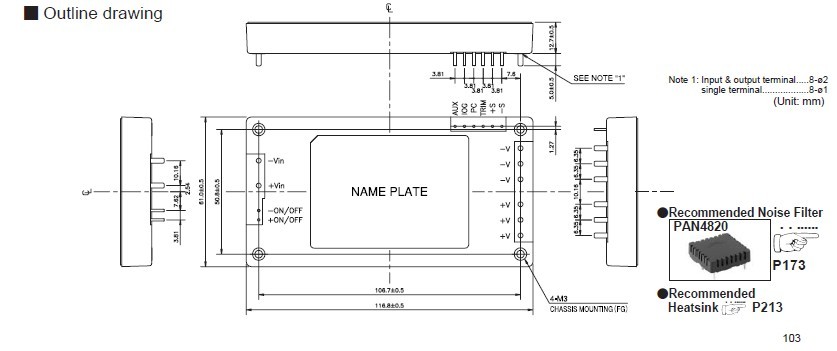

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PAF700F48-12/T |
TDK-Lambda |
DC/DC Converters 700W 12V 58.5A |
Data Sheet |
|
|
||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||
|
PAF700F48-12 |
TDK-Lambda |
DC/DC Converters 700W 12V 58.5A |
Data Sheet |
|
|
||||||||
|
PAF700F48-12/T |
TDK-Lambda |
DC/DC Converters 700W 12V 58.5A |
Data Sheet |
|
|
||||||||
|
PAF700F48-28 |
TDK-Lambda |
DC/DC Converters 700W 28V 25A |
Data Sheet |
|
|
||||||||
|
PAF700F48-28/T |
TDK-Lambda |
DC/DC Converters 700W 28V 25A |
Data Sheet |
|
|
||||||||
