Product Summary

The PAF600F24-28 is a high power DC-DC module.

Parametrics

PAF600F24-28 absolute maximum ratings: (1)Nominal Output Voltage: 28 V; (2)Output Current (Max): 21.5 A; (3)Max Output Power: 602 W; (4)Efficiency (Typ): 89 %; (5)Input Voltage range: 19 to 36 V; (6)Operating temperature: -40°C ~ +100°C.

Features

PAF600F24-28 features: (1)Full-brick type DC-DC Power Module suitable for information and telecommunication equipment; (2)Intensive control circuit, Zero Voltage Switching (ZVS); (3)High efficiency, low noise, high power density, good cost performance; (4)Maximum output power density: up to 5.53W/cm3; (5)Wide input voltage range: DC36-76V.

Diagrams

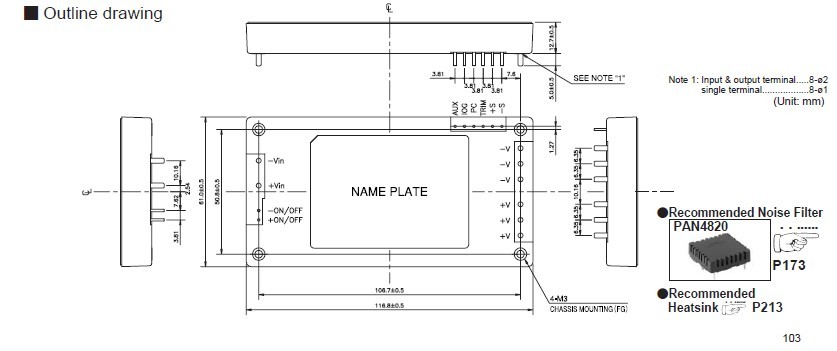

PAF600F24-28 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PAF600F24-28
PAF600F24-28

TDK-Lambda

DC/DC Converters 602W 28V 21.5A

Data Sheet

0-1: $165.00
1-10: $156.00
PAF600F24-28/T
PAF600F24-28/T

TDK-Lambda

DC/DC Converters 602W 28V 21.5A

Data Sheet

0-1: $165.00
1-10: $156.00
