Product Summary

The NPH15S4803IC is a DC-DC Converter combines ease of application with versatility. The pin pattern is based on the popular industry standard, but two additional pins may optionally be fitted to provide a variety of features not commonly found on units of this type. High efficiency enables full rating to be achieved in a small package without heatsinking, and a high surge capability will provide for start-up and transient loads, whilst being thermally protected against sustained overload. Overload protection of the “constant current” type ensures start-up into complex load conditions. The copper case achieves efficient heat transfer and screening. The product range of the NPH15S4803IC has been recognised by Underwriters Laboratory (UL) to UL 1950 for operational insulation, file number E179522 applies.

Parametrics

NPH15S4803IC absolute maximum ratings: (1)Input voltage, 24V input types: –0.5V to 40V; (2)Input voltage, 48V input types: –0.5V to 80V; (3)Output Voltage: –0.3V to regulated voltage; (4)Output trim control: –1V to +30V; (5)Synchronisation/shutdown control: ±15V relative to input return.

Features

NPH15S4803IC features: (1)High Efficiency to 89%; (2)Power Density up to 2.4W/cm3(39W/in3); (3)1.5kV Input to Output Isolation; (4)Industry Standard Pinout; (5)UL 1950 Recognised; (6)Non Latching Current Limit; (7)Constant 350kHz Frequency; (8)Versatile Control Options; (9)Continuous Rating to 30W at 40°C Without Heatsink; (10)Operation to Zero Load; (11)Protected Against Load Faults; (12)Internal Over Temperature Protection; (13)Uses No Electrolytic Capacitors; (14)UL 94V-0 Package Materials.

Diagrams

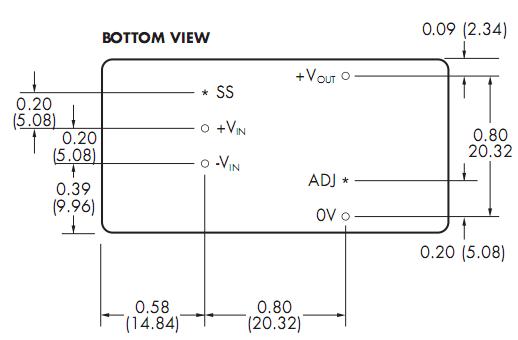

NPH15S4803IC block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
NPH15S4803IC
NPH15S4803IC
Murata Power Solutions
DC/DC Converters 48Vin 3.4Vout 4.4A Isolated 15W
Data Sheet
0-1: $28.88
1-5: $28.13
5-10: $27.14
10-25: $26.26
