Product Summary

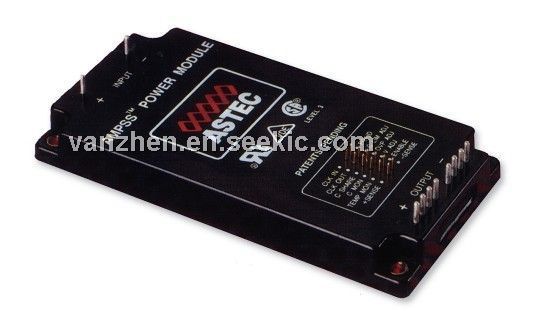

The BM80A-300L-033F90 is an astec integrated power.

Parametrics

BM80A-300L-033F90 absolute maximum ratings: (1)Operating temperature (baseplate): -20°C to +85°C; (2)Storage temperature: -40°C to +105°C; (3)Current Monitor Output: 0 to 1mA; (4)Noise/Ripple: 50mV typical.

Features

BM80A-300L-033F90 features: (1)300W Continuous power at 85°C baseplate temperature; (2)54W/in3 (3.3W/cm3); (3)High efficiency - 83% at full rated output; (4)1MHz Fixed frequency; (5)Low output ripple and noise; (6)Excellent transient response; (7)Safety isolated low voltage interface with ALPTM linear control; (8)High reliability - over 1 million hours MTBF; (9)Wide input voltage range; (10)Parallelable with accurate current sharing.

Diagrams

BM80A-300L-033F90 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
BM80A-300L-033F90
BM80A-300L-033F90


CONV DC-DC 300W 300VIN 3.3V 90A

Data Sheet

Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
BM80/2
BM80/2

Megger

Insulation Testers / Megohmmeters A/D Hand-Held Tester Multimeter

Data Sheet

Negotiable
BM80A-048L-033F70
BM80A-048L-033F70


CONV DC-DC 300W 48VIN 3.3V 70A

Data Sheet

Negotiable
BM80A-300L-022F85
BM80A-300L-022F85


CONV DC-DC 300W 300VIN 2.2V 85A

Data Sheet

Negotiable
BM80A-300L-033F70
BM80A-300L-033F70


CONV DC-DC 300W 300VIN 3.3V 70A

Data Sheet

Negotiable
BM80A-300L-033F90
BM80A-300L-033F90


CONV DC-DC 300W 300VIN 3.3V 90A

Data Sheet

Negotiable
BM80A-300L-050F60
BM80A-300L-050F60


CONV DC-DC 300W 300VIN 5.0V 60A

Data Sheet

Negotiable
