Product Summary
The XC-ES30/ES30CE is a compact, lightweight, black-and-white camera module of a new concept, which is produced as input device for image processing by using the latest technology. The model inherits the basic functions of the XC-75 (installing a 1/2-inch CCD) and the XC-73 (installing a 1/3-inch CCD), which are used in various types of devices and systems and win popularity in the machine vision field. The XC-ES30/ES30CE provides an external trigger shutter that can catch a high-speed moving subject using an external signal. This enables a still image to be read in arbitrary timing. These two models are compatible with each other, thereby functioning in the same cabinet and by the same operation.
Parametrics
XC-ES30/ES30CE absolute maximum ratings: (1)Supply voltage: +12 VDC (+10.5 V to 15V); (2)Power consumption: 2.0 W; (3)Operating temperature: -5℃ to +45℃; (4)Storage temperature: -30℃ to +60℃; (5)Performance assurance temperature: 0℃ to +40℃; (6)Operating humidity: 20 to 80 % (Non-condensing); (7)Storage humidity: 20 to 95 % (Non-condensing); (8)Vibration resistance: 10G.
Features
XC-ES30/ES30CE features: (1)1/2", 1/3" IT CCD; (2)External trigger shutter function; (3)Restart Reset (R.R) function; (4)Synchronization system: Internal/external HD/VD, and VS; (5)(VS is used only during external synchronization; (6)Setting each mode on rear panel: The setting of each mode can be changed by selecting DIP and rotary switch. Almost all switches are located on the rear panel. This feature permits easy setting after equipment is installed; (7)Compact and lightweight; (8)C-mount; (9)Excellent shock and vibration resistance; (10)Compatibility.

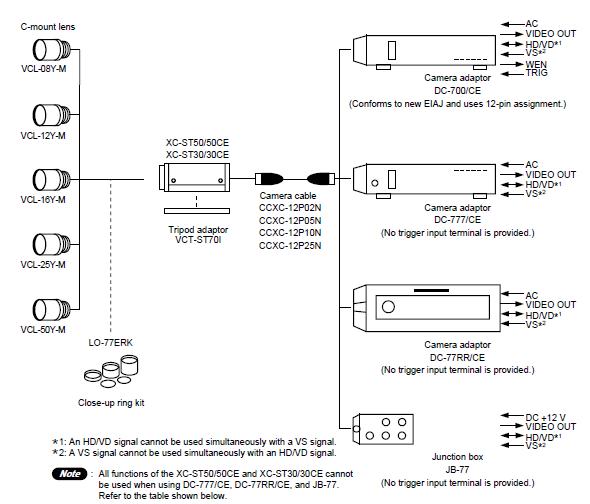

Diagrams
