Product Summary

The TMP86FS49BFG is an 8 bit microcontroller. The TMP86FS49BFG memory is composed Flash, RAM, DBR(Data buffer register) and SFR(Special function register). It is mapped in 64-Kbyte address space.

Parametrics

TMP86FS49BFG absolute maximum ratings: (1)Supply voltage, VDD: -0.3 to 6.0 V; (2)Input voltage, VIN: -0.3 to VDD +0.3 V; (3)Output voltage, VOUT1: -0.3 to VDD +0.3 V; (4)Output current (Per 1 pin), IOUT1: -1.8mA; IOUT2: 3.2mA; IOUT3: 30mA; (5)Output current (Total), ΣIOUT1: -30mA; ΣIOUT2: 60mA; ΣIOUT3 P0: 80mA; (6)Power dissipation [Topr = 85 ℃], PD: 300 mW; (7)Soldering temperature (time), Tsld: 260 (10 s); (8)Storage temperature, Tstg: -55 to 125℃; (9)Operating temperature, Topr: -40 to 85℃.

Features

TMP86FS49BFG features: (1)8-bit single chip microcomputer TLCS-870/C series, Instruction execution time: 0.25 μs (at 16 MHz); 122 μs (at 32.768 kHz); 132 types & 731 basic instructions; (2)17interrupt sources (External: 5 Internal: 12); (3)Input / Output ports (26 pins) Large current output: 8pins (Typ. 20mA), LED direct drive; (4)Prescaler, Time base timer; Divider output function; (5)Watchdog Timer; (6)16-bit timer counter: 1 ch, Timer, External trigger, Window, Pulse width measurement, Event counter, Programmable pulse generate (PPG) modes; (7)8-bit timer counter: 2 ch, Timer, Event counter, Programmable divider output (PDO).

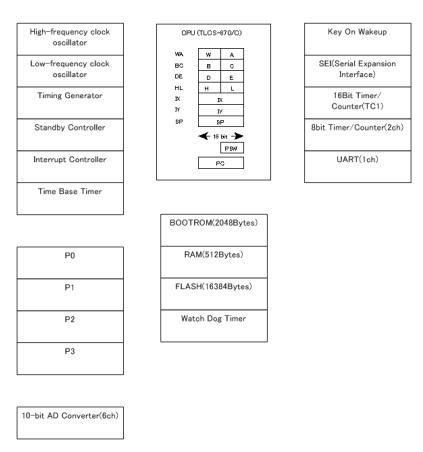

Diagrams

TMP86FS49BFG pin connection
