NCN8025AMNTXG

NCN8025AMNTXG, smart card lnterface IC, 1.8 V, 70 mA, QFN

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1001 ~ 10000 :	0.40 / Piece
10001 ~ 100000 :	0.30 / Piece

PartNumber:: NCN8025AMNTXG

Brand:: ON Semiconductor - ON | Pack: QFN | D/C: 13+

Availability:: Supply Ability: 100000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-18

From Other Seller

Part Number:NCN8025AMNTXG
US $0.30 - 0.50
Quantity:

piece

Product Summary

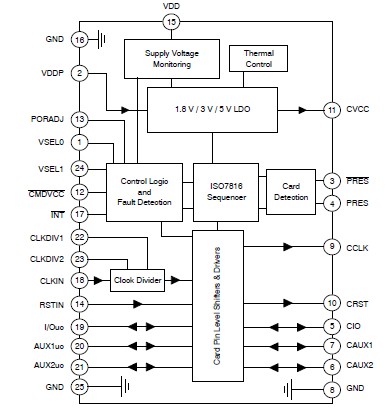

The NCN8025AMNTXG is a compact and cost−effective single smart card interface IC. The NCN8025AMNTXG is dedicated for 1.8 V / 3.0 V / 5.0 V smart card reader/writer applications. The card VCC supply is provided by a built−in very low drop out and low noise LDO. Applications are (1)Pay TV, Set Top Box Decoder with Conditional Access and Pay−per−View; (2)Conditional Access Module (CAM / CAS); (3)SIM card interface applications (UICC / USIM); (4)Point Of Sales and Transaction Terminals; (5)Electronic Payment and Identification.

Parametrics

The NCN8025AMNTXG absolute maximum ratings: (1)Operating Ambient Temperature Range: −40 to +85 °C; (2)Operating Junction Temperature Range: −40 to +125 °C; (3)Maximum Junction Temperature: +125 °C; (4)Storage Temperature Range: −65 to + 150 °C.

Features

The NCN8025AMNTXG features: (1)Single IC Card Interface; (2)Fully Compatible with ISO 7816−3, EMV4.2, UICC and Related Standards Including NDS and Other STB Standards (Nagravision, Irdeto...); (3)3 Bidirectional Buffered I/O Level Shifters (C4, C7 and C8)(QFN−24)− 1 Bidirectional I/O Level Shifter for the QFN−16 compact version; (4)1.8 V, 3.0 V or 5.0 V ± 5 % Regulated Card Power Supply Generation such as ICC ≤ 70 mA; (5)Regulator Power Supply: VDDP = 2.7 V to 5.5 V, 3.0 V to 5.5 V & 4.85 V to 5.5 V; (6)Independent Power Supply range on Controller Interface such as VDD = 2.7 V to 5.5 V.
