Product Summary

The ISO7240CDWR is a quad-channel digital isolator with multiple channel configurations with output enable function. The device has logic input and output buffers separated by TI silicon dioxide (SiO 2 ) isolation barrier. Used in conjunction with isolated power supplies, the ISO7240CDWR block high voltage, isolate grounds, and prevent noise currents from entering the local ground and interfering with or damaging sensitive circuitry. The applications of the ISO7240CDWR include Industrial Fieldbus, Computer Peripheral Interface, Servo Control Interface and Data Acquisition.

Parametrics

ISO7240CDWR absolute maximum ratings: (1)VCC, Supply voltage, VCC1 , VCC2: – 0.5 to 6 V; (2)VI, Voltage at IN, OUT, EN: – 0.5 to 6 V; (3)IO, Output current: ± 15 mA; (4)TJ, Maximum junction temperature: 170℃; (5)ESD electrostatic discharge, human body model: ±4kV; field-induced-charged device model: ±1kV; machine model: ±200V.

Features

ISO7240CDWR features: (1)1, 25, and 150-Mbps Signaling Rate Options: Low Channel-to-Channel Output Skew; 1 ns Max; Low Pulse-Width Distortion (PWD); 2 ns Max; Low Jitter Content; 1 ns Typ at 150 Mbps; (2)Typical 25-Year Life at Rated Working Voltage; (3)4000-V peak Isolation, 560-V peak Working Voltage; (4)UL 1577 Certified; (5)4 kV ESD Protection; (6)Operate With 3.3-V or 5-V Supplies; (7)High Electromagnetic Immunity; (8)– 40 to 125℃ Operating Range.

Diagrams

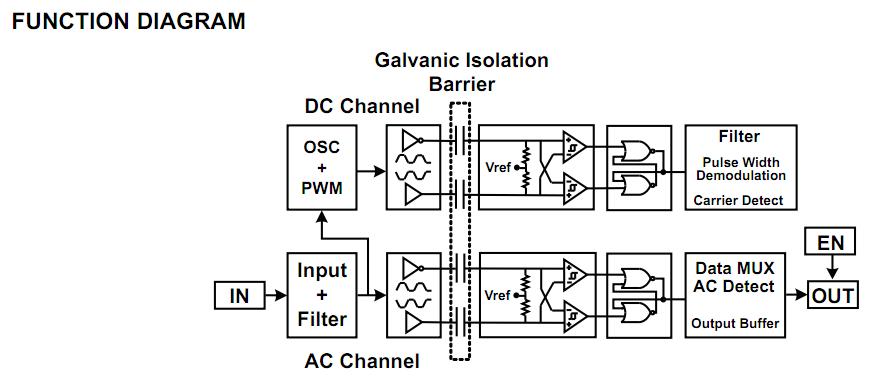

ISO7240CDWR pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ISO7240CDWR
ISO7240CDWR
Texas Instruments
Isolator Interface IC Quad Ch 4/0 25Mbps Dig Iso
Data Sheet
0-1485: $1.46
1485-2000: $1.40
2000-5000: $1.35
