Product Summary

The iW7032 is a high efficiency driver for LEDs. It is designed for use with mid to large size LCD panels that use arrays of LEDs as a backlight source. It is able to communicate with up to two external step up or step down PWM DC DC converters to drive up to 32 separate strings of multiple series connected LEDs. The iW7032 features dynamic output voltage control, which automatically chooses the lowest active LED source voltage to regulate the feedback voltage of a step up or step down converter. Through this function, the iW7032 is able to dynamically adjust the output voltage of up to two external step up or step down converters to optimize the system power efficiency. The iW7032 applications are (1)Edgelit Local Dimming for LED TV Backlit; (2)Direct & Segment Edge LED Backlit LCDTV; (3)LCD Public Information Displays.

Parametrics

iW7032 absolute maximum ratings: (1)VIN supply voltage VIN: -0.3 to 40V; (2)LDO3 output voltage VLDO3: -0.3 to 4V; (3)LDO5 output voltage VLDO5: -0.3 to 7V; (4)AGND / AVSS / GNDn to GND: -0.3 to 0.3V; (5)LEDn voltage VLEDn: -0.3 to 56V; (6)Logic I/O pins (SCK, MISO, MOSI, CSB, & VSYNC): -0.3 to 4V; (7)Voltage on all other pins except for LEDn pins: -0.3 to 7V; (8)Power dissipation at TA ≤ 25℃PD: TBDmW.

Features

iW7032 features: (1)LED failure (open and short circuit)detection; (2)LED brightness local dimming, scanning, and 3D game mode controlled by SPI interface; (3)PWM dimming range from 1% to 99.9% with 10 bit resolution; (4)Vsync synchronized PWM; (5)PWM dimming frequency from 120Hz to 2.4 kHz in NTSC; 100Hz to 2.4kHz in PAL; and 96Hz to 2.4kHz in 3D game mode with 5 bit programmability in normal mode.; (6)Over temperature protection; (7)UVLO protection; (8)Green & Pb free (RoHS compliant)BOM.

Diagrams

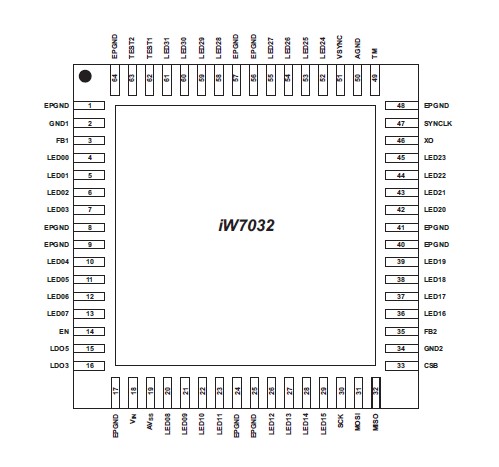

 iW7032 pin connection
