Product Summary

The drv603pw is a stereo line driver designed to allow the removal of the output dc-blocking capacitors for reduced component count and cost. The drv603pw is ideal for single supply electronics where size and cost are critical design parameters. The applications of the device are (1)Set-top boxes; (2)CD / DVD Players; (3)DVD-Receivers; (4)HTIB; (5)PDP / LCD TVs.

Parametrics

drv603pw absolute maximum ratings: (1)Supply voltage, AVDD, PVDD: – 0.3 V to 5.5 V; (2)VI Input voltage V SS: - 0.3 V to V DD + 0.3 V; (3)R(Load) Minimum load impedance: ≥ 100 Ω; (4)TA Operating free-air temperature range: – 40 to 85℃; (5)TJ Operating junction temperature range: – 40 to 150℃; (6)Tstg Storage temperature range: – 65 to 85℃.

Features

drv603pw features: (1)Space Saving Package 20-Pin, 4 mm × 4 mm Thin QFN, Thermally Optimized PowerPAD Package; (2)Ground-Referenced Outputs Eliminate DC-Blocking Capacitor; (3)Wide Power Supply Range: 1.8 V to 4.5 V; (4)2 Vrms/Ch Output Voltage into 600Ω at 3.3 V; (5)Independent Right and Left Channel Shutdown Control; (6)Short-Circuit and Thermal Protection; (7)Pop Reduction Circuitry.

Diagrams

drv603pw block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

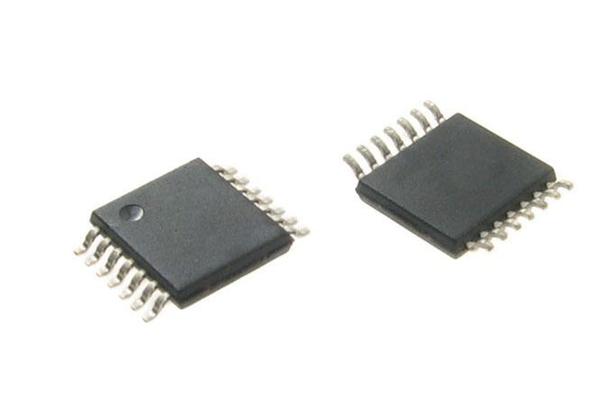

DRV603PW
DRV603PW
Texas Instruments
Buffers & Line Drivers 2Vrms DIRECTPATH Var Inp Gain Line Drvr
Data Sheet
0-1: $1.66
1-25: $1.52
25-100: $1.10
100-250: $0.97
DRV603PWR
DRV603PWR
Texas Instruments
Buffers & Line Drivers 2Vrms DIRECTPATH Var Inp Gain Line Drvr
Data Sheet
0-1: $1.43
1-25: $1.15
25-100: $1.04
100-250: $0.94
