Product Summary

The ADS823E is an 10-Bit, 60MHz Sampling CMOS analog-to- digital converter that operate from a single +5V power supply. The ADS823E provide excellent performance with a single-ended input and can be operated with a differential input for added spurious performance. Applications are (1)Medical imaging; (2)Communications; (3)Ccd imaging; (4)Video digitizing; (5)Test equipment.

Parametrics

ADS823E absolute maximum ratings: (1)+VS: +6V; (2)Analog Input: –0.3V to (+VS + 0.3V); (3)Logic Input: –0.3V to (+VS + 0.3V); (4)Case Temperature: +100°C; (5)Junction Temperature: +150°C; (6)Storage Temperature: +150°C.

Features

ADS823E features: (1)High snr: 60db; (2)High sfdr: 74dbfs; (3)Low power: 256mw; (4)Internal/external reference option; (5)Single-ended or fully differential analog input; (6)Programmable input range; (7)Low dnl: 0.25lsb; (8)Single +5v supply operation; (9)+3v or +5v logic i/o compatible; (10)Power down: 20mw; (11)Ssop package.

Diagrams

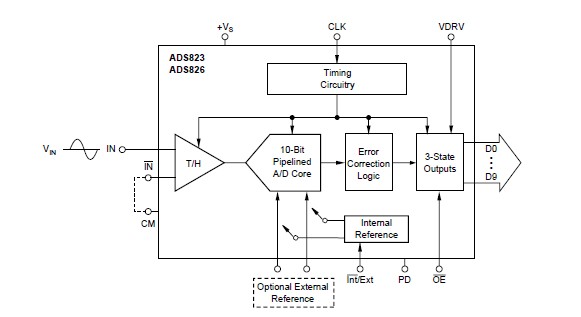

ADS823E pin connection
