Product Summary

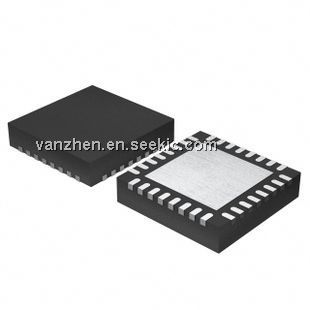

The WM8978GEFL is a low power, high quality stereo codec designed for portable applications such as Digital still camera or Digital Camcorder. The WM8978GEFL integrates preamps for stereo differential mics, and includes drivers for speakers, headphone and differential or stereo line output. External component requirements are reduced as no separate microphone or headphone amplifiers are required. The application of the WM8978GEFL is Stereo Camcorder or DSC.
Parametrics
WM8978GEFL absolute maximum ratings: (1)DBVDD, DCVDD, AVDD supply voltages: -0.3V to +3.63V; (2)SPKVDD supply voltage: -0.3V to +7V; (3)Voltage range digital inputs DGND: -0.3V to DVDD +0.3V; (4)Voltage range analogue inputs AGND: -0.3V to AVDD +0.3V; (5)Storage temperature prior to soldering: 30℃ max / 85% RH max; (6)Storage temperature after soldering: -65 to +150℃.
Features
WM8978GEFL features: (1)Enhanced 3-D function for improved stereo separation; (2)Digital playback limiter; (3)5-band Equaliser (record or playback); (4)Programmable ADC High Pass Filter (wind noise reduction); (5)Programmable ADC Notch Filter; (6)Aux inputs for stereo analog input signals or On-chip PLL supporting 12, 13, 19.2MHz and other clocks; (7)Low power, low voltage 2.5V to 3.6V (digital core: 1.62V to 3.6V); (8)power consumption ＜30mW all-on with 2.5V supplies; (9)5x5mm 32-pin QFN package.

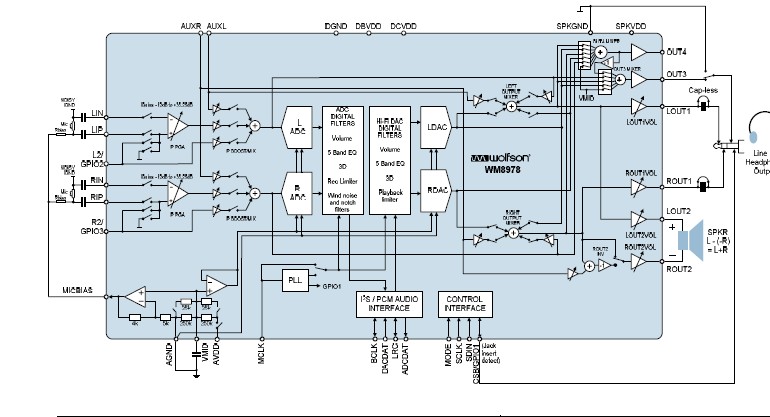

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 WM8978GEFL |
Other |
|
Data Sheet |
Negotiable |
|
||||||
 |
WM8978GEFL/RV |
Wolfson Microelectronics |
Audio CODECs STR CODEC w/HP SPKR 32-pin |
Data Sheet |
|
|
||||||
|
WM8978GEFL/V |
Wolfson Microelectronics |
Audio CODECs Stereo Codec with H/P Spkr |
Data Sheet |
|
|
||||||
