W9864G6JH-6

W9864G6JH-6, high-speed synchronous dynamic random access memory, -0.5 to VDD+0.5 V, 50 mA, TSOP, Winbond

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.00 / Piece
101 ~ 1000 :	1.50 / Piece
1001 ~ 10000 :	1.00 / Piece

PartNumber:: W9864G6JH-6

Brand:: Winbond - Winbond | Pack: TSOP | D/C: 13+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-10-25

From Other Seller

Part Number:W9864G6JH-6
US $1.00 - 2.00
Quantity:

piece

Product Summary

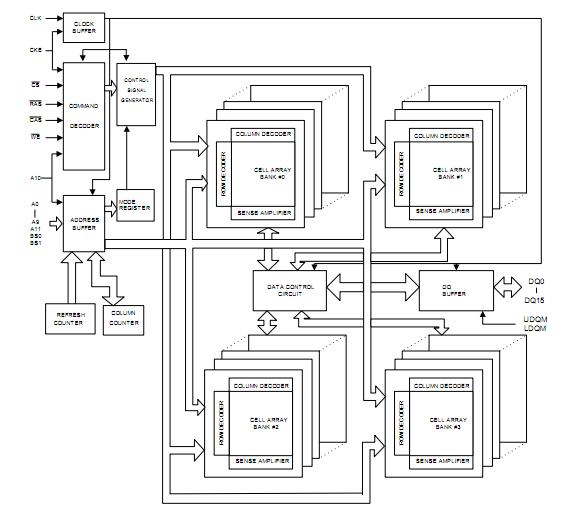

The W9864G6JH-6 is a high-speed synchronous dynamic random access memory (SDRAM). The W9864G6JH-6 organized as 1M words × 4 banks × 16 bits. The W9864G6JH-6 delivers a data bandwidth of up to 200M words per second (-5). To fully comply with the personal computer industrial standard, the W9864G6JH-6 is sorted into the following speed grades: -5, -6, -6I, -6A, -6L, -75 and 75L. The -5 grade parts is compliant to the 200MHz/CL3 specification. The -6 grade parts is compliant to the 166MHz/CL3 or 133MHz/CL2 specification. The -6I/-6A/-6L grade parts of the W9812G6JH-6 are compliant to the 166MHz/CL3 specification. The -75/75L of the W9864G6JH-6 is compliant to the 133MHz/CL3 specification. The -6L and 75L parts of the W9864G6JH-6 support self refresh current IDD6 max. 1.5 mA.

Parametrics

W9864G6JH-6 absolute maximum ratings: (1)Voltage on any pin relative to VSS, VIN: -0.5 to VDD+0.5 V; (2)Voltage on VDD/VDDQ supply relative to VSS, VDD: -0.5 to 4.6 V; (3)Operating Temperature, TOPR: 0 to 70 ℃; (4)Storage Temperature, TSTG: -55 to 150 ℃; (5)Soldering Temperature (10s), TSOLDER: 260 ℃; (6)Power Dissipation, PD: 1 W; (7)Short Circuit Output Current, IOUT: 50 mA.

Features

W9864G6JH-6 features: (1)3.3V ± 0.3V Power Supply; (2)Up to 200 MHz Clock Frequency; (3)1048576 Words × 4 Banks × 16 Bits Organization; (4)Self Refresh Mode: Standard and Low Power; (5)CAS Latency: 2 and 3; (6)Burst Length: 1, 2, 4, 8 and Full Page ; (7)Burst Read, Single Writes Mode; (8)Byte Data Controlled by LDQM, UDQM; (9)Power Down Mode; (10)Auto-precharge and Controlled Precharge; (11)4K Refresh Cycles/64 mS; (12)Interface: LVTTL; (13)Packaged in TSOP II 54-pin, 400 mil using Lead free materials with RoHS compliant.
