Product Summary

The W25Q128BVEIG (8M-bit) Serial Flash memory provides a storage solution for systems with limited space, pins and power. The 25Q series offers flexibility and performance well beyond ordinary Serial Flash devices. The W25Q128BVEIG is ideal for code shadowing to RAM, executing code directly from Dual/Quad SPI (XIP) and storing voice, text and data. A Hold pin, Write Protect pin and programmable write protection, with top, bottom or complement array control, provide further control flexibility. Additionally, the W25Q128BVEIG supports JEDEC standard manufacturer and device identification with a 64-bit Unique Serial Number.

Parametrics

W25Q128BVEIG absolute maximum ratings: (1)Supply Voltage VCC: –0.6 to +4.6 V; (2)Voltage Applied to Any Pin VIO Relative to Ground: –0.6 to VCC+0.4 V; (3)Transient Voltage on any Pin VIOT <20nS Transient Relative to Ground: –2.0V to VCC+2.0V V; (4)Storage Temperature TSTG: –65 to +150 °C; (5)Electrostatic Discharge Voltage VESD Human Body Model: –2000 to +2000 V.

Features

W25Q128BVEIG features: (1)Software and Hardware Write-Protect; (2)Top/Bottom, 4KB complement array protection; (3)Lock-Down and OTP array protection; (4)64-Bit Unique Serial Number for each device; (5)Discoverable Parameters (SFDP)Register; (6)3X256-Byte Security Registers with OTP locks; (7)Volatile & Non-volatile Status Register Bits; (8)Low Instruction overhead; (9)Continuous Read with 8/16/32/64-Byte Wrap; (10)As few as 8 clocks to address memory; (11)Allows true XIP (execute in place)operation; (12)Outperforms X16 Parallel Flash.

Diagrams

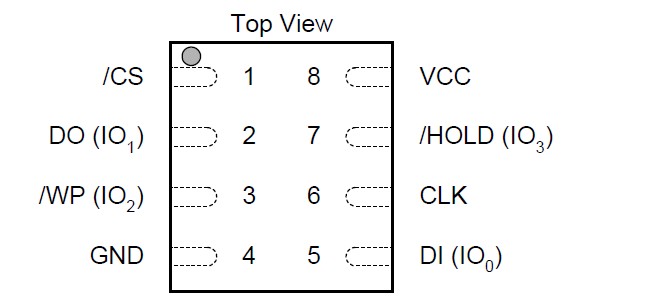

W25Q128BVEIG pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
W25Q128BVEIG
W25Q128BVEIG

IC SPI FLASH 128MBIT 8WSON
Data Sheet
Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
W25Q128BVEIG
W25Q128BVEIG

IC SPI FLASH 128MBIT 8WSON
Data Sheet
Negotiable
W25Q128FVEIG
W25Q128FVEIG

IC FLASH SPI 128MBIT 8WSON
Data Sheet
0-1: $2.44
1-10: $2.21
10-25: $2.16
25-50: $2.15
50-100: $1.93
100-250: $1.92
250-500: $1.85
500-1000: $1.76
1000-2500: $1.74
W25Q128FVFIG
W25Q128FVFIG

IC FLASH SPI 128MBIT 16SOIC
Data Sheet
0-1: $2.38
1-10: $2.16
10-25: $2.11
25-50: $2.10
50-100: $1.88
100-250: $1.87
250-500: $1.81
500-1000: $1.72
1000-2500: $1.70
W25Q128FVSIG
W25Q128FVSIG

IC FLASH SPI 128MBIT 8SOIC
Data Sheet
0-1: $2.21
1-10: $2.00
10-25: $1.96
25-50: $1.95
50-100: $1.75
100-250: $1.74
250-500: $1.68
500-1000: $1.59
1000-2500: $1.58
W25Q16BVSFIG
W25Q16BVSFIG

IC SPI FLASH 16MBIT 16SOIC
Data Sheet
0-1: $0.52
1-10: $0.47
10-25: $0.47
25-50: $0.46
50-100: $0.42
100-250: $0.41
250-500: $0.41
500-1000: $0.39
1000-2500: $0.38
W25Q16BVSSIG
W25Q16BVSSIG

IC SPI FLASH 16MBIT 8SOIC
Data Sheet
0-1: $0.44
1-10: $0.40
10-25: $0.40
25-50: $0.39
50-100: $0.35
100-250: $0.35
250-500: $0.34
500-1000: $0.33
1000-2500: $0.32
