Product Summary
The UPC339G2-E2 is a quad comparator which is designed to operate from a single power supply over a wide range of voltage. Operation from split power supplies, is also possible and the power supply current drain is very low. Further advantage, the input common-mode voltage includes ground, even though operated from a single power supply voltage.
Parametrics
UPC339G2-E2 absolute maximum ratings: (1)Voltage between V+ and V–, V+ - V-: -0.3 to +36 V; (2)Differential Input Voltage, VID: ±36 V; (3)Input Voltage Note 2 VI V–: -0.3 to V- +36 V; (4)Output Voltage Note 3 VO V–: -0.3 to V– +36 V; (5)Power Dissipation C Package, PT: 570 mW; G2 Package: 550 mW; (6)Output Short Circuit Duration: Indefinite sec; (7)Operating Ambient Temperature, TA: -20 to +80℃; (8)Storage Temperature, Tstg: -55 to + 125℃.
Features
UPC339G2-E2 features: (1)Common-mode input voltage range includes V-; (2)Wide supply voltage range, 2 V to 32 V (Single); ±1 V to ±16 V (Split); (3)Low supply current; (4)Open collector output.

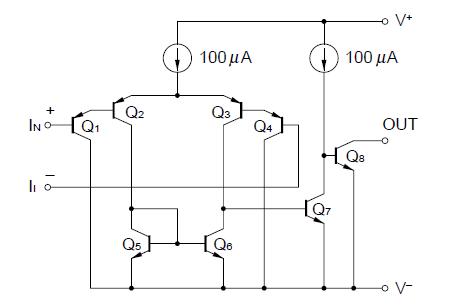

Diagrams
