Product Summary

The UPC311G2-T1 is a votlage comparator that has input currents more than a hundred times lower than devices like conventional standard type of 710. The UPC311G2-T1 is also designed to operate over a wide range of supply voltages; from ±15V op amp supplies down to the single 5V supply used for IC logic. Its output is compatible with HNIL, DTL and TTL as well as MOS circuits.

Parametrics

UPC311G2-E2 absolute maixmum ratings: (1)voltage between V+ and V-, V+ - V-: -0.3 to 36V; (2)differential input voltage, VID: ±30V; (3)input voltage, VI: V- -0.3 to V++0.3V; (4)output to negative supply voltage, VO - V-: -0.3 to 40V; (5)ground to negative supply voltage, VGND-V-: -0.3 to 30V; (6)power dissipation, PT: 350mW; (7)output short circuit duration: 10sec; (8)operating temperature range, Topt: -20 to 80℃; (9)storage temperature range, Tstg: -55 to 125℃.

Features

UPC311G2-E2 features: (1)operate from single 5V supply; (2)maximum input current: 250nA; (3)maximum offset current: 50mA; (4)fast ransient response: 200ns typ.

Diagrams

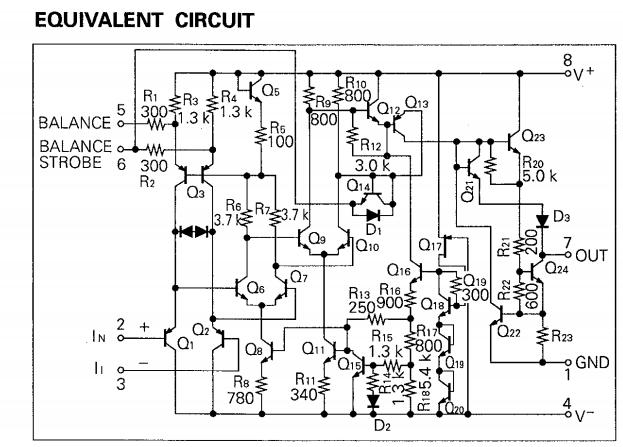

UPC311G2-E2 block diagram
