Product Summary
The ULN2804AFWG is a high−voltage, high−current darlington driver comprised of eight NPN darlington pairs. All units feature integral clamp diodes for switching inductive loads. Applications include relay, hammer, lamp and display (LED) drivers. The suffix (G) appended to the part number represents a Lead (Pb)-Free product.
Parametrics
ULN2804AFWG absolute maximum ratings: (1)Output sustaining voltage VCE (SUS): −0.5 to 50 V; (2)Output current IOUT: 500 mA / ch; (3)Input voltage VIN: −0.5 to 30 V; (4)Clamp diode reverse voltage VR: 50 V; (5)Clamp diode forward current IF: 500 mA; (6)Power dissipation AFWG PD: 0.92 / 1.31 (Note)W; (7)Operating temperature Topr: −40 to 85 °C; (8)Storage temperature Tstg: −55 to 150 °C.
Features
ULN2804AFWG features: (1)Output current (single output)500 mA (Max.); (2)High sustaining voltage output 50 V (Min.); (3)Output clamp diodes; (4)Inputs compatible with various types of logic.; (5)Package Type−APG : DIP−18pin; (6)Package Type−AFWG : SOL−18pin.

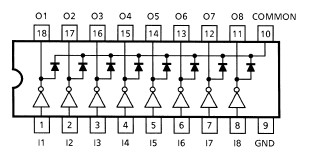

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ULN2804AFWG(5,EL,M |
Toshiba |
Transistors Darlington 8CH. 50V/.5A IFD IC |
Data Sheet |
Negotiable |
|
||||||||||||
|
ULN2804AFWG(5,M) |
Toshiba |
Transistors Darlington 8CH. 50V/.5A IFD IC |
Data Sheet |
Negotiable |
|
||||||||||||
 |
ULN2804AFWG(C,ELHA |
Toshiba |
Transistors Darlington 8ch 500mA 50V 10.5kOhm 5V -40/85 |
Data Sheet |
|
|
||||||||||||
|
ULN2804AFWG(O,M) |
Toshiba |
Transistors Darlington 8-ch 500mA 50V 10.5 kOhm 6 to 15V |
Data Sheet |
Negotiable |
|
||||||||||||
|
ULN2804AFWG(O,EL,M |
Toshiba |
Transistors Darlington 8-ch 500mA 50V 10.5 kOhm 6 to 15V |
Data Sheet |
Negotiable |
|
||||||||||||
