UCC2897APW

PWM controller, 120 V, 2.5A, TSSOP, Texas Instruments, UCC2897APW

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1001 ~ 10000 :	0.40 / Piece
10001 ~ 100000 :	0.30 / Piece

PartNumber:: UCC2897APW

Brand:: Texas Instruments - TI | Pack: TSSOP | D/C: 13+

Availability:: Supply Ability: 100000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-17

From Other Seller

Part Number:UCC2897APW
US $0.30 - 0.50
Quantity:

piece

Product Summary

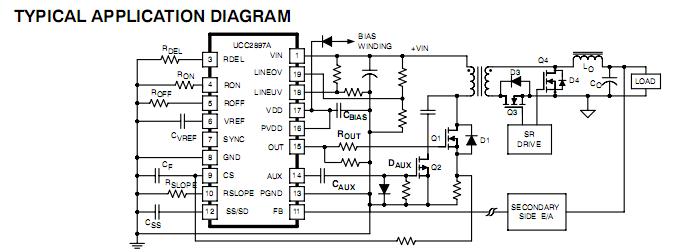

The UCC2897APW is a PWM controller simplifies implementation of the various active clamp/reset and synchronous rectifier switching power topologies. The UCC2897APW is a peak current-mode, fixed-frequency,high-performance pulse width modulator. It includes the logic and the drive capability for the P-channel auxiliary switch along with a simple method of programming the critical delays for proper active clamp operation. The applications of the UCC2897APW are (1)High-Efficiency DC/DC Power Supplies ; (2)Server Power, 48-VTelecom, Datacom, and 42-V Automotive Applications.

Parametrics

UCC2897APW absolute maximum ratings: (1)Line input voltage, VIN: 120 V; (2)Supply voltage, VDD (IDD <10mA): 16.5 V; (3)Analog inputs FB,CS,SYNC, LINEOV, LINEUV: -0.3 to (VREF +0.3) V; (4)Output source current (peak), IO_SOURCE OUT AUX: 2.5A; (5)Output sink current (peak), IO_SINK OUT, AUX: -2.5A; (6)Operating junction temperature range, TJ: -55 to 150°C; (7)Storage temperature,Tstg: -65 to 150°C.

Features

UCC2897APW features: (1)Low Output Jitter; (2)“Soft Stop” shut down of MAIN and AUX; (3)110-V Input Startup Function; (4)Ideal for Active Clamp/Reset Forward, Flyback and Synchronous Rectifier Uses; (5)Provides Complementary Auxiliary Driver with Programmable Deadtime(Turn-On Delay)between AUX and MAIN Switches; (6)Peak Current-Mode Control with 0.5-V Cycle-by-Cycle Current Limiting; (7)TrueDrivet 2-ASink,2-A Source Outputs; (8)Trimmed Internal Bandgap Reference for Accurate Line UV and Line OV Threshold; (9)Programmable Slope Compensation; (10)High-Performance 1.0-MHz Synchronizable Oscillator with Internal Timing Capacitor; (11)Precise Programmable Maximum Duty Cycle; (12)PB-Free Lead Finish Package.
