TVP5158PNPR

TVP5158PNPR, Four-Channel NTSC/PAL Video Decoder, 0.5 to 4V, 1.2V, TQFP, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1001 ~ 10000 :	0.40 / Piece
10001 ~ 100000 :	0.30 / Piece

PartNumber:: TVP5158PNPR

Brand:: Texas Instruments - TI | Pack: TQFP | D/C: 13+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-26

From Other Seller

Part Number:TVP5158PNPR
US $0.30 - 0.50
TVP5158PNPR

US $4.80 - 4.80 / Piece
(0) Remove
Quantity:

piece

Product Summary

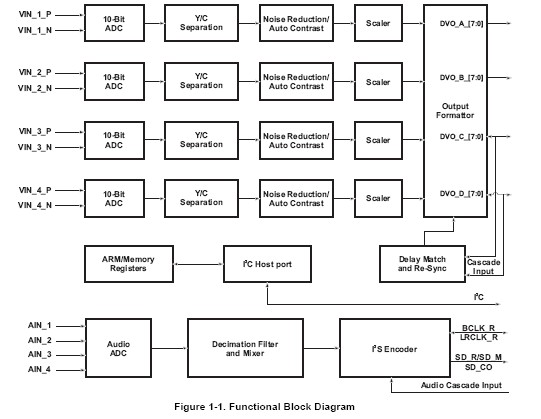

The TVP5158PNPR is a Four-Channel NTSC/PAL Video Decoder. It digitizes and decodes all popular base-band analog video formats into digital video output. Each channel of this decoder includes 10-bit 27-MSPS A/D converter (ADC). Preceding each ADC in the TVP5158PNPR, the corresponding analog channel contains an analog circuit that clamps the input to a reference voltage and applies the gain. The applications of the TVP5158PNPR include Security/surveillance digital video recorders/servers and PCI products, Automotive infotainment video hub, Large format video wall displays, Game systems.

Parametrics

TVP5158PNPR absolute maximum ratings: (1)VDD_3_3 to VSS_3_3: 0.5 V to 4.0 V; (2)VDD_1_1 to VSS_1_1: -0.2 V to 1.2 V; (3)VDD Supply voltage range VDDA_3_3 to VSSA_3_3: -0.3 V to 3.6 V; (4)VDDA_1_8 to VSSA_1_8: -0.2 V to 2.0 V; (5)VDDA_1_1 to VSSA_1_1: -0.2 V to 1.2 V; (6)VI Digital input voltage range VI to DGND: -0.5 V to 4.5 V; (7)VO Digital output voltage range VO to DGND: -0.5 V to 4.5 V; (8)Analog video input voltage range AIN to AGND: -0.2 V to 2.5 V; (9)Analog audio input voltage range AIN to AGND: -0.2 V to 2.0 V; (10)Commercial range: 0 to 70℃; (11)TA Operating free-air temperature range Industrial range : -40 to 85℃; (12)Tstg Storage temperature range: -65 to 150℃.

Features

TVP5158PNPR features: (1)Four separate video decoder channels having the following features for each channel; (2)Four independent scalers support horizontal and/or vertical 2:1 downscaling; (3)Channel multiplexing capabilities with metadata insertion; (4)Support crystal interface with on-chip oscillator and single clock input mode; (5)Single 27-MHz clock input or crystal for all standards and all channels; (6)Standard programmable video output format.
