Product Summary
The TS5A3159DBVR is a SPDT analog switch. The TS5A3159 is a single-pole double throw (SPDT) analog switch that is designed to operate from 1.65-V to 5.5-V. The device offers a low ON-state resistance and an excellent ON-resistance, matching with the break-before-make feature to prevent signal distortion during the transferring of a signal from one channel to another. The device has an excellent total harmonic distortion (THD) performance and consumes very low power. These features make this device suitable for portable audio applications. The applications of the TS5A3159DBVR include Cell Phones, PDAs and Portable Instrumentation.
Parametrics
TS5A3159DBVR absolute maximum ratings: (1)Supply voltage range: -0.5 to 6.5 V; (2)Analog voltage range: -0.5 to V+ + 0.5 V; (3)Analog port diode current: ±50 mA; (4)ON.state switch current: ±200 mA; (5)ON.state peak switch current: ±400 mA; (6)Digital input voltage range: -0.5 to 6.5 V; (7)Digital input clamp current: VIN < 0 .50 mA; (8)Continuous current through V+ or GND: ±100 mA; (9)Package thermal impedance: 165 ℃; (10)Storage temperature range: -65 to 150 ℃.
Features
TS5A3159DBVR features: (1)Specified Break-Before-Make Switching; (2)Low ON-State Resistance; (3)Control Inputs Are 5-V Tolerant; (4)Low Charge Injection; (5)Excellent ON-Resistance Matching; (6)Low Total Harmonic Distortion; (7)1.65-V to 5.5-V Single-Supply Operation.

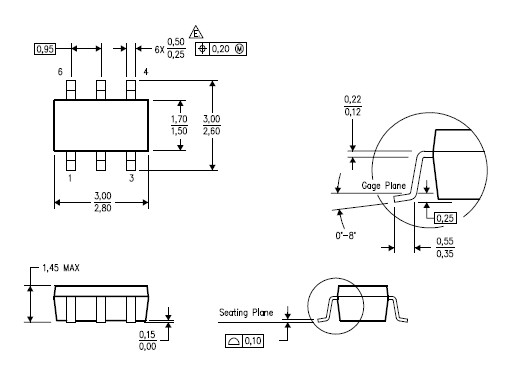

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TS5A3159DBVR |
Texas Instruments |
Analog Switch ICs 1-Ohm SPDT Analog Switch |
Data Sheet |
|
|
||||||||||||
|
TS5A3159DBVRE4 |
Texas Instruments |
Analog Switch ICs 1-Ohm SPDT Analog Switch |
Data Sheet |
|
|
||||||||||||
|
TS5A3159DBVRG4 |
Texas Instruments |
Analog Switch ICs 1-Ohm SPDT Analog Switch |
Data Sheet |
|
|
||||||||||||
