Product Summary

The TS5A3157DBVR is a SPDT analog switch. The TS5A3157DBVR is a single-pole double-throw (SPDT) analog switch that is designed to operate from 1.65 V to 5.5 V. This device can handle both digital and analog signals, and signals up to V+ can be transmitted in either direction. The applications of the TS5A3157DBVR include Sample-and-Hold Circuits, Battery-Powered Equipment, Audio and Video Signal Routing and Communication Circuits.

Parametrics

TS5A3157DBVR absolute maximum ratings: (1)Supply voltage range: –0.5 6.5 V; (2)Analog voltage range: –0.5 V+ + 0.5 V; (3)Analog port diode current : –50 to 50 mA; (4)Digital input voltage range: –0.5 to 6.5 V; (5)Digital input clamp current: –50 mA; (6)Continuous current through V+: –100 to 100 mA; (7)Continuous current through GND: –100 to 100 mA; (8)Storage temperature range: –65 150 ℃.

Features

TS5A3157DBVR features: (1)Low ON-State Resistance (10 Ω); (2)Control Inputs Are 5-V Tolerant; (3)Low Charge Injection; (4)Excellent ON-State Resistance Matching; (5)Low Total Harmonic Distortion (THD); (6)1.65-V to 5.5-V Single-Supply Operation.

Diagrams

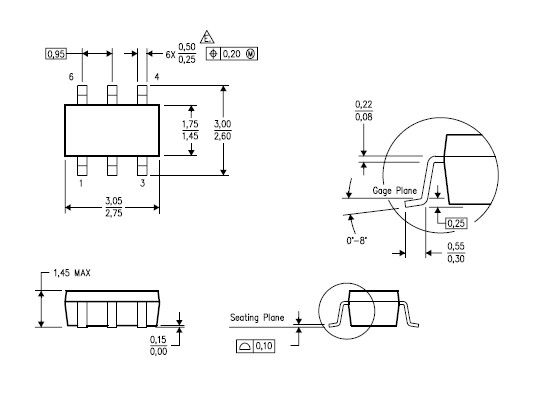

TS5A3157DBVR dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TS5A3157DBVR
TS5A3157DBVR

Texas Instruments

Analog Switch ICs 10-Ohm SPST Analog Switch

Data Sheet

0-1: $0.26
1-25: $0.18
25-100: $0.15
100-250: $0.13
TS5A3157DBVRE4
TS5A3157DBVRE4

Texas Instruments

Analog Switch ICs 10-Ohm SPST Analog Switch

Data Sheet

0-1: $0.22
1-25: $0.17
25-100: $0.15
100-250: $0.13
TS5A3157DBVRG4
TS5A3157DBVRG4

Texas Instruments

Analog Switch ICs 10O SPDT Ana Sw

Data Sheet

0-1: $0.25
1-25: $0.18
25-100: $0.16
100-250: $0.14
