Product Summary
The TS5A23157DGSR is a dual single-pole double-throw (SPDT) analog switch designed to operate from 1.65 V to 5.5 V. This device can handle both digital and analog signals. Signals up to 5.5 V (peak) can be transmitted in either direction. The applications of the TS5A23157DGSR include Sample-and-Hold Circuits, Battery-Powered Equipment, Audio and Video Signal Routing, Communication Circuits.
Parametrics
TS5A23157DGSR absolute maximum ratings: (1)V+, Supply voltage range: -0.5 to 6.5 V; (2)VNC, VNO, VCOM, Analog voltage range: -0.5 to V+ + 0.5 V; (3)I/OK, Analog port diode current: ±50 mA; (4)INC,INO,ICOM, On-state switch current: ±50 mA; (5)VIN, Digital input voltage range: -0.5 TO 6.5 V; (6)IIK, Digital input clamp current VIN < 0: -50 mA; (7)Continuous current through V+ or GND: ±100 mA; (8)Tstg, Storage temperature range: -65 to 150℃.
Features
TS5A23157DGSR features: (1)Specified Break-Before-Make Switching; (2)Low ON-State Resistance (10 Ω); (3)Control Inputs Are 5-V Tolerant; (4)Low Charge Injection; (5)Excellent ON-Resistance Matching; (6)Low Total Harmonic Distortion; (7)1.8-V to 5.5-V Single-Supply Operation; (8)Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II; (9)ESD Performance Tested Per JESD 22, 2000-V Human-Body Model(A114-B, Class II); 1000-V Charged-Device Model (C101).

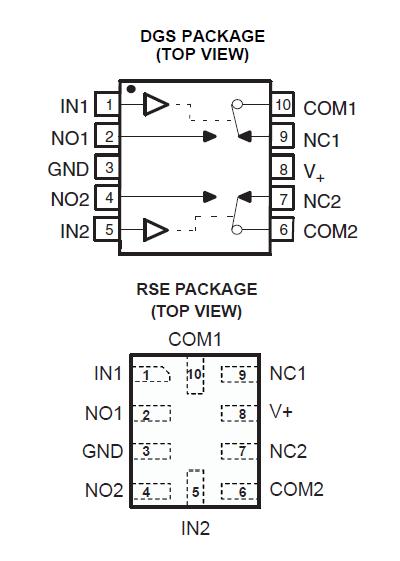

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TS5A23157DGSR |
Texas Instruments |
Analog Switch ICs Dual 10-Ohm SPDT Analog Switch |
Data Sheet |
|
|
||||||||||||
|
TS5A23157DGSRE4 |
Texas Instruments |
Analog Switch ICs Dual 10-Ohm SPDT Analog Switch |
Data Sheet |
|
|
||||||||||||
|
TS5A23157DGSRG4 |
Texas Instruments |
Analog Switch ICs Dual 10-Ohm SPDT Analog Switch |
Data Sheet |
|
|
||||||||||||
