TRS232ECD

TRS232ECD, dual driver/receiver, 8 mA, 1.0-μF, 6 V, SOIC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1000 ~ 10000 :	0.40 / Piece
10000 ~ 100000 :	0.30 / Piece

PartNumber:: TRS232ECD

Brand:: Texas Instruments - TI | Pack: SOIC | D/C: 13+

Availability:: Supply Ability: 100000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-14

From Other Seller

Part Number:TRS232ECD
US $0.30 - 0.50
Quantity:

piece

Product Summary

The TRS232ECD is a dual driver/receiver that includes a capacitive voltage generator to supply TIA/RS-232-F voltage levels from a single 5-V supply. Each receiver converts TIA/RS-232-F inputs to 5-V TTL/CMOS levels. This receiver has a typical threshold of 1.3 V, a typical hysteresis of 0.5 V, and can accept ±30-V inputs. Each driver converts TTL/CMOS input levels into TIA/RS-232-F levels. Applications of the TRS232ECD include TIA/RS-232-F, Battery-Powered Systems, Terminals, Modems and Computers.

Parametrics

TRS232ECD absolute maximum ratings: (1)Input supply voltage range:–0.3 to 6 V; (2)Positive output supply voltage range: VCC–0.3 to 15 V; (3)Negative output supply voltage range: –0.3 to -15 V; (4)Operating virtual junction temperature: 150℃; (5)Storage temperature range: -65 to 150℃.

Features

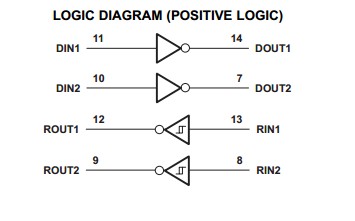

TRS232ECD features: (1)Meets or Exceeds TIA/RS-232-F and ITU Recommendation V.28; (2)Operates From a Single 5-V Power Supply With 1.0-μF Charge-Pump Capacitors; (3)Operates up to 250 kbit/s; (4)Two Drivers and Two Receivers; (5)±30-V Input Levels; (6)Low Supply Current: 8 mA Typical; (7)ESD Protection for RS-232 Bus Pins.
