Product Summary

The TPS79333DBVR is an ultralow-noise, high psrr, fast rf 200-ma low-dropout linear regulator. The TPS79333DBVR of low-dropout (LDO) low-power linear voltage regulators features high power-supply rejection ratio (PSRR), ultralow-noise, fast start-up, and excellent line and load transient responses in NanoStar wafer chip scale and SOT23 packages. The TPS79333DBVR uses an advanced, proprietary BiCMOS fabrication process to yield extremely low dropout voltages. The TPS79333DBVR can be applied in RF: VCOs, Receivers, ADCs, audio, cellular and cordless telephones, handheld organizers, and pdas.

Parametrics

TPS79333DBVR absolute maximum ratings: (1)VIN range: -0.3 V to 6 V; (2)VEN range: -0.3 V to VIN + 0.3 V; (3)VOUT range: -0.3 V to 6 V; (4)Peak output current: Internally limited; (5)ESD rating, HBM: 2 kV; (6)ESD rating, CDM: 500 V; (7)Continuous total power dissipation: See Dissipation Ratings Table; (8)Junction temperature range, DBV package: -40°C to 150°C; (9)Junction temperature range, YEQ package: -40°C to 125°C; (10)Storage temperature range, Tstg: -65°C to 150°C.

Features

TPS79333DBVR features: (1)200-mA RF Low-Dropout Regulator With Enable; (2)High PSRR (70 dB at 10 kHz); (3)Fast Start-Up Time (50μs); (4)Stable With a 2.2-μF Ceramic Capacitor; (5)Excellent Load/Line Transient Response; (6)Very Low Dropout Voltage (112 mV at Full Load, TPS79330); (7)5- and 6-Pin SOT23 (DBV) and NanoStar Wafer Chip Scale (YEQ) Packages.

Diagrams

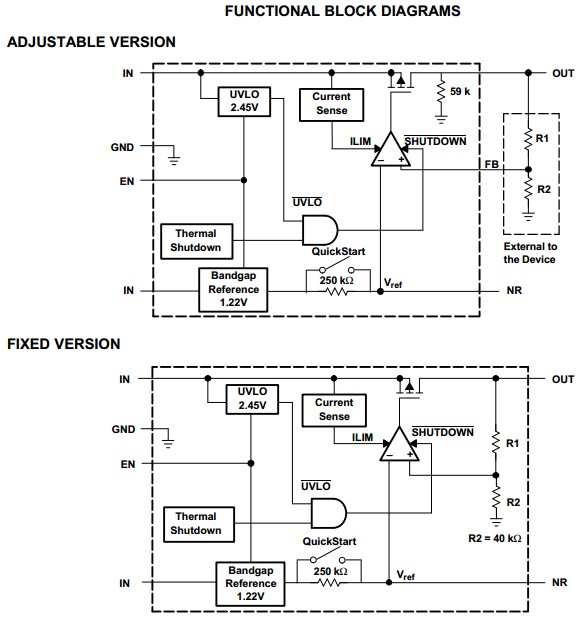

TPS79333DBVR functional block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TPS79333DBVR
TPS79333DBVR
Texas Instruments
Low Dropout (LDO) Regulators 200mA 3.3V Hi PSRR
Data Sheet
0-1: $0.47
1-25: $0.37
25-100: $0.33
100-250: $0.28
TPS79333DBVREP
TPS79333DBVREP
Texas Instruments
Low Dropout (LDO) Regulators Mil Enh Ultra Lo Noise Hi PSRR 200mA
Data Sheet
0-1: $0.56
1-25: $0.45
25-100: $0.41
100-250: $0.36
TPS79333DBVRG4
TPS79333DBVRG4
Texas Instruments
Low Dropout (LDO) Regulators High PSRR Fast RF High-Enable 200mA
Data Sheet
0-1: $0.45
1-25: $0.35
25-100: $0.31
100-250: $0.27
TPS79333DBVRG4Q1
TPS79333DBVRG4Q1
Texas Instruments
Low Dropout (LDO) Regulators Auto Lo Noise Hi PSRR 200mA LDO
Data Sheet
0-2050: $0.22
2050-3000: $0.20
3000-6000: $0.19
6000-12000: $0.18
TPS79333DBVRQ1
TPS79333DBVRQ1
Texas Instruments
Low Dropout (LDO) Regulators AutoCatUltraLoNoise HiPSRRFastRF200mA
Data Sheet
0-1: $0.50
1-25: $0.40
25-100: $0.36
100-250: $0.34
