Product Summary

The TPS73701DCQR is a Low-Dropout Regulator. The TPS73701DCQR uses an NMOS pass element in a voltage-follower configuration. This topology is relatively insensitive to output capacitor value and ESR, allowing a wide variety of load configurations. Load transient response is excellent, even with a small 1.0μF ceramic output capacitor. The NMOS topology also allows very low dropout for the die size used. The TPS73701DCQR uses an advanced BiCMOS process to yield high precision while delivering very low dropout voltages and low ground pin current. Current consumption, when not enabled, is under 1mA and ideal for portable applications. These devices are protected by thermal shutdown and foldback current limit. The applications of the TPS73701DCQR include Point of Load Regulation for DSPs, FPGAs, ASICs, and Microprocessors, Post-Regulation for Switching Supplies and Portable/Battery-Powered Equipment.

Parametrics

TPS73701DCQR absolute maximum ratings: (1)VIN range: –0.3 to +6.0 V; (2)VEN range: –0.3 to +6.0 V; (3)VOUT range: –0.3 to +5.5 V; (4)Peak output current: Internally limited; (5)Output short-circuit duration: Indefinite; (6)Junction temperature range: –55 to +150 ℃; (7)Storage temperature range: –65 to +150 ℃; (8)ESD rating, HBM: 2 kV; (9)ESD rating, CDM: 500 V.

Features

TPS73701DCQR features: (1)Input Voltage Range: 2.2V to 5.5V; (2)Ultra-Low Dropout Voltage: 130mV typ at 1A; (3)0.5% Initial Accuracy; (4)Less Than 20nA typical IQ in Shutdown Mode; (5)Thermal Shutdown and Current Limit for Fault Protection.

Diagrams

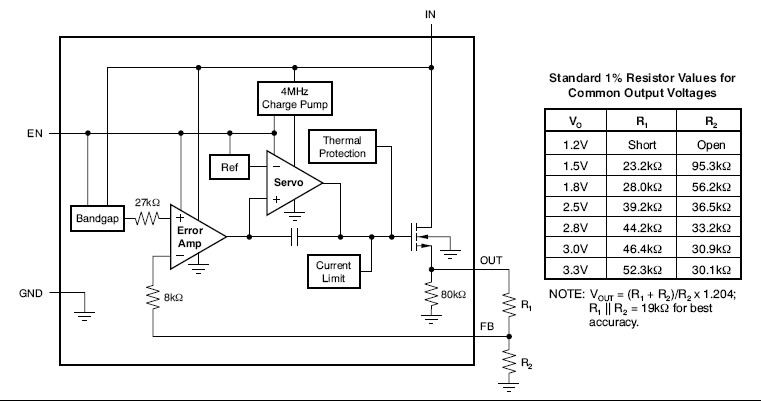

TPS73701DCQR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TPS73701DCQR
TPS73701DCQR

Texas Instruments

Low Dropout (LDO) Regulators 1.0A LDO Regulator

Data Sheet

0-1: $0.79
1-25: $0.59
25-100: $0.54
100-250: $0.50
TPS73701DCQRG4
TPS73701DCQRG4

Texas Instruments

Low Dropout (LDO) Regulators 1.0A LDO Regulator

Data Sheet

Negotiable
