Product Summary

The TPS73233DCQR is a low-dropout (LDO) voltage regulator, which uses a new topology: an NMOS pass element in a voltage-follower configuration. This top-ology is stable using output capacitors with low ESR, and even allows operation without a capacitor. The TPS73233DCQR also provides high reverse blockage (low reverse current) and ground pin current that is nearly constant over all values of output current. The applications of the TPS73233DCQR include Portable/Battery-Powered Equipment, Post-Regulation for Switching Supplies, Noise-Sensitive Circuitry such as VCOs, Point of Load Regulation for DSPs, FPGAs, ASICs, and Microprocessors.

Parametrics

TPS73233DCQR absolute maximum ratings: (1)VIN range: -0.3 to 6.0 V; (2)VEN range: -0.3 to 6.0 V; (3)VOUT range: -0.3 to 5.5 V; (4)Peak output current: Internally limited; (5)Output short-circuit duration: Indefinite; (6)Junction temperature range, TJ: -55 to +150 ℃; (7)Storage temperature range: -65 to +150 ℃; (8)ESD rating, HBM: 2 kV; (9)ESD rating, CDM: 500 V.

Features

TPS73233DCQR features: (1)Stable with No Output Capacitor or Any Value or Type of Capacitor; (2)Input Voltage Range: 1.7V to 5.5V; (3)Ultralow Dropout Voltage: 40mV Typ at 250mA; (4)Excellent Load Transient Response—with or without Optional Output Capacitor; (5)New NMOS Topology Provides Low Reverse Leakage Current; (6)Low Noise: 30μVRMS Typ (10kHz to 100kHz); (7)0.5% Initial Accuracy; (8)1% Overall Accuracy (Line, Load, and Temperature).

Diagrams

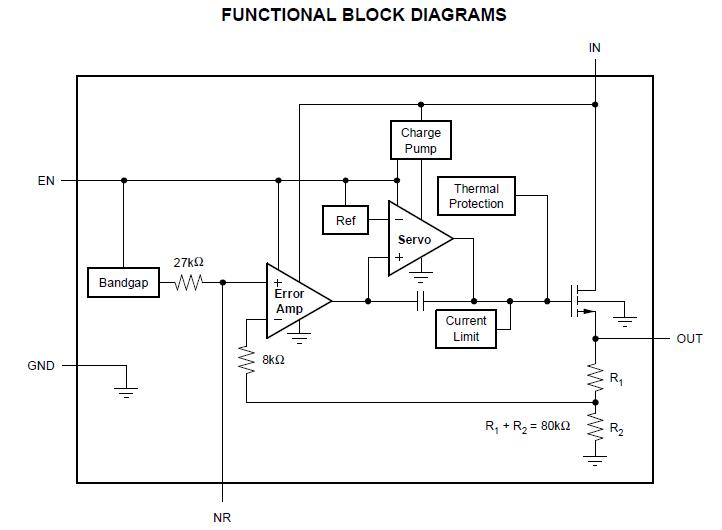

TPS73233DCQR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TPS73233DCQR
TPS73233DCQR
Texas Instruments
Low Dropout (LDO) Regulators Cap-Free NMOS 250mA
Data Sheet
0-1: $1.05
1-25: $0.85
25-100: $0.76
100-250: $0.68
