TPS71433DCKR

low-dropout (LDO) voltage regulator, SC, - 0.3 to +9.9 V, 80mA, 0.47μF

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1001 ~ 10000 :	0.40 / Piece
10001 ~ 100000 :	0.30 / Piece

PartNumber:: TPS71433DCKR

Brand:: Texas Instruments - TI | Pack: SC | D/C: 13+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-18

From Other Seller

Part Number:TPS71433DCKR
US $0.30 - 0.50
Quantity:

piece

Product Summary

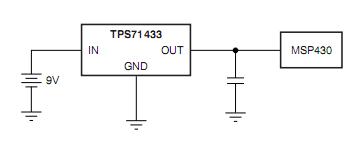

The TPS71433DCKR is a low-dropout (LDO) voltage regulator. It offers the benefits of wide input voltage range, low-dropout voltage, low-power operation, and miniaturized packaging. The TPS71433DCKR operates over an input range of 2.5V to 10V, are stable with any capacitor ≥ 0.47μF. The 2.5V to 10V input voltage range, combined with 3.2μA quiescent current, makes this device particularly well-suited for two-cell alkaline, and two-cell lithium, and other low quiescent current sensitive battery applications. The low dropout voltage and low quiescent current allow operation at extremely low power levels. Therefore, the TPS71433DCKR is ideal for power battery management ICs. Specifically, because the device is enabled as soon as the applied voltage reaches the minimum input voltage, the output is quickly available to power continuously-operating, battery-charging ICs. The applications of the TPS71433DCKR are (1)Ultralow-Power Microcontrollers; (2)Industrial/Automotive Applications; (3)PDAs; (4)Portable, Battery-Powered Equipment.

Parametrics

TPS71433DCKR absolute maximum ratings: (1)VIN range: –0.3 to +24 V; (2)VOUT range: - 0.3 to +9.9 V; (3)V FB range: -0.3 to +4 V; (4)Peak output current: Internally limited; (5)Junction temperature range, TJ: –40 to +125 °C; (6)Storage temperature range: –65 to +150 °C; (7)ESD rating, Human body model (HBM): 2 kV; Charged device model (CDM): 500 V.

Features

TPS71433DCKR features: (1)Wide Input Voltage Range: 2.5V to 10V; (2)Low Quiescent Current: 3.2μA at 80mA; (3)Stable with any Capacitor > 0.47μF; (4)Output Current: 80mA; (5)Dropout Voltage: 415mV at 50mA Load; (6)Available in Fixed 3.3V or Adjustable (1.2V to 8.8V) Versions; (7)Current Limit; (8)SC70-5 and 2mm x 2mm SON-6 Packages; (9)Specified Junction Temperature Range: –40°C to +125°C.
