TPS61175PWPR

TPS61175PWPR, 3A, High Voltage Boost Converter, TSSOP, -0.3 to 7V, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1001 ~ 10000 :	0.40 / Piece
10001 ~ 100000 :	0.30 / Piece

PartNumber:: TPS61175PWPR

Brand:: Texas Instruments - TI | Pack: TSSOP | D/C: 13+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-26

From Other Seller

Part Number:TPS61175PWPR
US $0.30 - 0.50
Quantity:

piece

Product Summary

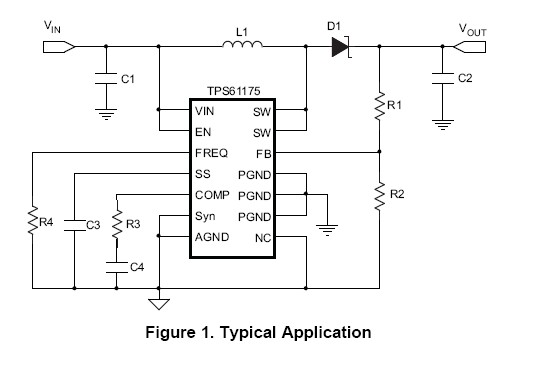

The TPS61175PWPR is a 3-A High Voltage Boost Converter with Soft-start and Programmable Switching Frequency. It can be configured in several standard switching-regulator topologies, including boost, SEPIC and flyback. The TPS61175PWPR has a wide input voltage range to support application with input voltage from multi-cell batteries or regulated 5-V, 12-V power rails. The applications of the TPS61175PWPR include 5V to 12V, 24V power conversion, Supports SEPIC, Flyback topology, ADSL Modems, TV Tuner.

Parametrics

TPS61175PWPR absolute maximum ratings: (1)Supply Voltages on pin VIN (2): –0.3 to 20 V; (2)Voltages on pins EN(2): –0.3 to 20 V; (3)Voltage on pin FB, FREQ and COMP(2): –0.3 to 3 V; (4)Voltage on pin SYNC, SS(2): –0.3 to 7 V; (5)Voltage on pin SW(2): –0.3 to 40 V; (6)Continuous Power Dissipation: See Dissipation Rating Table; (7)Operating Junction Temperature Range: –40 to +150℃; (8)Storage Temperature Range: –65 to +150℃; (9)Lead Temperature (soldering, 10 sec:) 260℃.

Features

TPS61175PWPR features: (1)2.9-V to 18-V Input Voltage Range; (2)3A, 40V Internal Switch; (3)High Efficiency Power Conversion: Up to 93%; (4)Frequency Set by External Resistor: 200-kHz to 2.2-MHz; (5)Synchronous External Switching Frequency; (6)User Defined Soft Start into Full Load; (7)Skip-Switching Cycle for Output Regulation at Light Load; (8)14-pin HTSSOP Package with PowerPad.
