TPS54320RHLR

Product Summary

The TPS54320RHLR is a step down converter. The TPS54320RHLR is a full featured 17V, 3A synchronous step down converter which is optimized for small designs through high efficiency and integrated high-side and low-side MOSFETs. Further space savings are achieved through current mode control, which reduces component count, and by selecting a high switching frequency, reducing the inductor’s footprint. The output voltage startup ramp is controlled by the SS/TR pin which allows operation as either a stand alone power supply or in tracking situations. The applications of the TPS54320RHLR include Broadband, Networking & Communication Infrastructure, Automated Test and Medical Equipment DSP and FPGA Point-of-Load Applications from 12-V Bus.

Parametrics

TPS54320RHLR absolute maximum ratings: (1)Input Voltage, VIN: –0.3 to 20V; PVIN: –0.3 to 20V; EN: –0.3 to 6V; BOOT: –0.3 to 27V; VSENSE: –0.3 to 3V; COMP: –0.3 to 3V; PWRGD: –0.3 to 6V; SS/TR: –0.3 to 3V; RT/CLK: –0.3 to 6V; (2)Output Voltage, BOOT-PH: 0 to 7V; PH: -1 to 20V; PH 10ns Transient: –3 to 20V; (3)Vdiff, GND to exposed thermal pad: -0.2 to 0.2V; (4)Source Current, RT/CLK±100mA; PH, Current Limit A; (5)Sink Current, PH, Current Limit A; PVIN, Current Limit A; COMP: ±200mA; PWRGD: -0.1 to 5mA; (6)Electrostatic Discharge (HBM) QSS 009-105 (JESD22-A114A): 2kV; (7)Electrostatic Discharge (CDM) QSS 009-147 (JESD22-C101B.01): 500V; (8)Operating Junction Temperature: –40 to 150℃; (9)Storage Temperature: –65 to 150℃.

Features

TPS54320RHLR features: (1)Integrated 57mΩ/ 50mΩ MOSFETs; (2)Split Power Rail: 1.6V to 17V on PVIN; (3)200kHz to 1.2MHz Switching Frequency; (4)Synchronizes to External Clock; (5)0.8V Voltage Reference With ±1% Accuracy; (6)Low 2μA Shutdown Quiescent Current; (7)Hiccup Overcurrent Protection; (8)Monotonic Start-Up into Prebiased Outputs; (9)-40℃ to 150℃ Operating Junction; (10)Temperature Range; (11)Pin-to-Pin Compatible with the TPS54620; (12)Adjustable Slow Start/Power Sequencing; (13)Power Good Output for Undervoltage and; (14)Overvoltage Monitoring; (15)Adjustable Input Undervoltage Lockout; (16)Supported by SwitcherPro Software Tool; (17)For SWIFT Documentation and SwitcherPro.

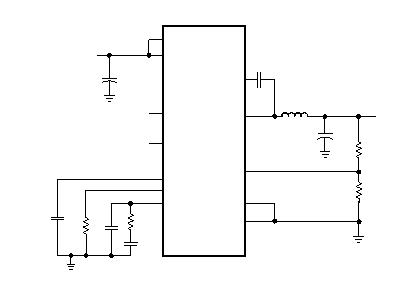

Diagrams
