TPS51200DRCR

TPS51200DRCR, sink/source Double Data Rate (DDR) termination regulator, 3.6V, 10-mA, 20-μF, QFN

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 500 :	3.00 / Piece
501 ~ 1000 :	2.00 / Piece
1001 ~ 3000 :	1.00 / Piece

PartNumber:: TPS51200DRCR

Brand:: Texas Instruments - TI | Pack: QFN | D/C: 13+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-31

From Other Seller

Part Number:TPS51200DRCR
US $1.00 - 3.00
Quantity:

piece

Product Summary

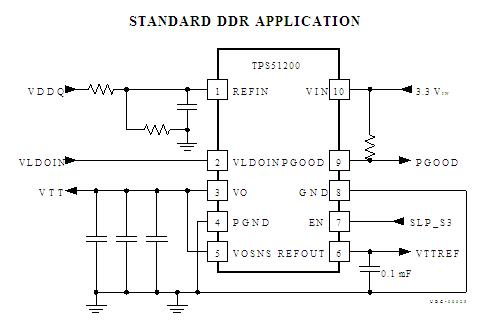

The TPS51200 is a sink/source Double Data Rate (DDR) termination regulator specifically designed for low input voltage, low-cost, low-noise systems where space is a key consideration. The TPS51200 maintains a fast transient response and only requires a minimum output capacitance of 20μF. The TPS51200 supports a remote sensing function and all power requirements for DDR, DDR2, DDR3, and Low Power DDR3/DDR4 VTT bus termination. The applications of the include Memory Termination Regulator for DDR, DDR2, DDR3, and Low Power DDR3/DDR4, Notebook/Desktop/Server, Telecom/Datacom, GSM Base Station, LCD-TV/PDP-TV, Copier/Printer, Set-Top Box.

Parametrics

TPS51200DRCR absolute maximum ratings: (1)Input voltage range, VIN, VLDOIN, VOSNS, REFIN: -0.3 to 3.6V; EN: -0.3 to 6.5V; PGND to GND: -0.3 to 0.3V; (2)Output voltage range, VO, REFOUT: -0.3 to 3.6V; VPGOOD: -0.3 to 6.5V; (3)Tstg, Storage temperature: -55 to 150℃.

Features

TPS51200DRCR features: (1)Input Voltage: Supports 2.5-V Rail and 3.3-V rail; (2)VLDOIN Voltage Range: 1.1 V to 3.5 V; (3)Sink/Source Termination Regulator Includes Droop Compensation; (4)Requires Minimum Output Capacitance of 20-μF (typically 3 × 10-μF MLCCs) for Memory Termination Applications (DDR); (5)PGOOD to Monitor Output Regulation; (6)EN Input; (7)REFIN Input Allows for Flexible Input Tracking Either Directly or Through Resistor Divider; (8)Remote Sensing (VOSNS); (9)±10-mA Buffered Reference (REFOUT); (10)Built-in Soft Start, UVLO and OCL; (11)Thermal Shutdown; (12)Meets DDR, DDR2 JEDEC Specifications; Supports DDR3 and Low-Power DDR3/DDR4 VTT Applications; (13)SON-10 PowerPAD Package.
