TPS51116RGER

TPS51116RGER, synchronous buck controller, QFN, 3V, 3A, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1001 ~ 10000 :	0.40 / Piece
10001 ~ 100000 :	0.30 / Piece

PartNumber:: TPS51116RGER

Brand:: Texas Instruments - TI | Pack: QFN | D/C: 13+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-18

From Other Seller

Part Number:TPS51116RGER
US $0.30 - 0.50
Quantity:

piece

Product Summary

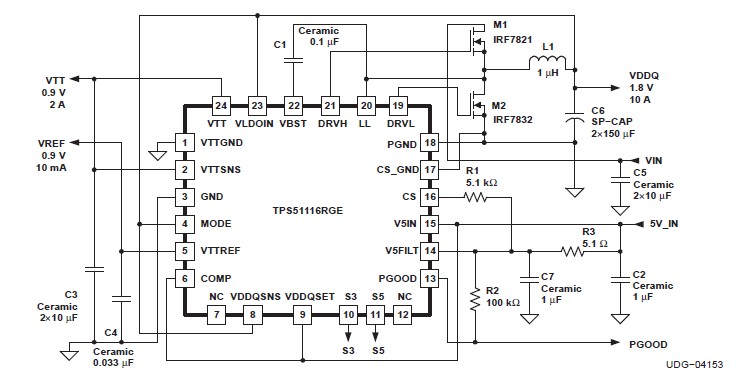

The TPS51116RGER is a synchronous buck controller. The TPS51116RGER provides a complete power supply for DDR/SSTL-2, DDR2/SSTL-18, and DDR3 memory systems. It integrates a synchronous buck controller with a 3-A sink/source tracking linear regulator and buffered low noise reference. The TPS51116RGER offers the lowest total solution cost in systems where space is at a premium. The TPS51116RGER synchronous controller runs fixed 400KHz pseudo-constant frequency PWM with an adaptive on-time control that can be configured in D-CAP Mode for ease of use and fastest transient response or in current mode to support ceramic output capacitors. The 3-A sink/source LDO maintains fast transient response only requiring 20-mF (2 × 10 mF) of ceramic output capacitance. In addition, the LDO supply input is available externally to significantly reduce the total power losses. The TPS51116RGER supports all of the sleep state controls placing VTT at high-Z in S3 (suspend to RAM) and discharging VDDQ, VTT and VTTREF (soft-off) in S4/S5 (suspend to disk). TPS51116RGER has all of the protection features including thermal shutdown and is offered in both a 20-pin HTSSOP Power PAD package and 24-pin 4 QFN. The applications of the TPS51116RGER include DDR/DDR2/DDR3/LPDDR3 Memory Power Supplies and SSTL-2 SSTL-18 and HSTL Termination.

Parametrics

TPS51116RGER absolute maximum ratings: (1)Input voltage range: -0.3 to 6 V; (2)Output voltage range: -1.0 to 30 V; (3)Operating ambient temperature range: -40 to 85 ℃; (4)Storage temperature: -55 to 150 ℃.

Features

TPS51116RGER features: (1) Synchronous Buck Controller (VDDQ) Wide-Input Voltage Range: 3.0-V to 28-V; (2) D.CAP. Mode with 100-ns Load Step Response; (3)Current Mode Option Supports Ceramic Output Capacitors; (4)Supports Soft-Off in S4/S5 States; (5)Current Sensing from RDS(on) or Resistor; (6)Equipped with Power good, Overvoltage Protection and Under voltage Protection; (7)3-A LDO (VTT), Buffered Reference (VREF) Capable to Sink and Source 3 A; (8)LDO Input Available to Optimize Power Losses; (9)Requires only 20-mF Ceramic Output Capacitor; (10)Buffered Low Noise 10-mA VREF Output; (11)Accuracy 20 mV for both VREF and VTT; (12)Supports High-Z in S3 and Soft-Off in S4/S5; (13)Thermal Shutdown.
