Product Summary

The TPS40193DRCR is a cost-optimized synchronous buck controller that operates from 4.5 V to 18 V input. These controllers implement a voltage-mode control architecture with the switching frequency fixed at 300 kHz. The higher switching frequency facilitates the use of smaller inductor and output capacitors, thereby providing a compact power-supply solution. An adaptive anti-cross conduction scheme is used to prevent shoot through current in the power FETs. Applications include Cable Modem CPE, Digital Set Top Box, Graphics/Audio Cards and Entry Level and Mid-Range Servers.

Parametrics

TPS40193DRCR absolute maximum ratings: (1)Input voltage range-VDD, ENABLE: –0.3 to 20V; (2)Input voltage range-SW: –5 to 2V; (3)Input voltage range-BOOT, HDRV: –0.3 to 30V; (4)Input voltage range-BOOT-SW, HDRV-SW (differential from BOOT or HDRV to SW: -0.3 to 6V ; (5)Input voltage range-COMP, FB, BP5, LDRV, PGD: –0.3 to 6V; (6)Operating junction temperature range: -40 to 150℃; (7)Storage temperature: -55 to 150℃.

Features

TPS40193DRCR features: (1)Input Operating Voltage Range: 4.5 V to 18 V; (2)Up to 20 A Output Currents; (3)Supports Pre-Biased Outputs; (4)0.5% 0.591 V Reference; (5)Three Selectable Thermally Compensated Short Circuit Protection Levels; (6)Hiccup Restart from Faults; (7)Internal 5-V Regulator; (8)High and Low side FET RDSON Current Sensing; (9)10-Pin 3 mm × 3 mm SON Package; (10)Internal 4-ms Soft-Start Time; (11)Thermal Shutdown Protection.

Diagrams

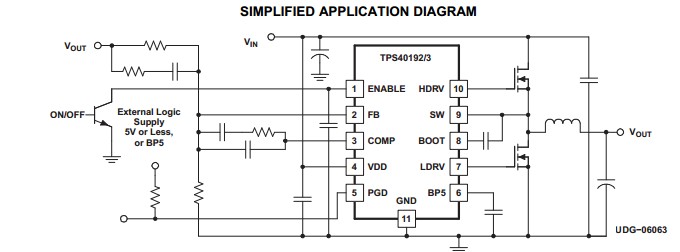

TPS40193DRCR SIMPLIFIED APPLICA

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TPS40193DRCR
TPS40193DRCR
Texas Instruments
DC/DC Switching Controllers 4.5V-8V Input Synch Buck Contr
Data Sheet
0-1: $1.57
1-25: $1.29
25-100: $1.16
100-250: $1.07
TPS40193DRCRG4
TPS40193DRCRG4
Texas Instruments
DC/DC Switching Controllers 4.5V-18V Input Synch Buck Cntrlr
Data Sheet
0-2220: $0.85
2220-3000: $0.82
3000-6000: $0.79
