Product Summary

The TPS40192DRCR is a cost-optimized synchronous buck controller that operate from 4.5V to 18 V input. The TPS40192DRCR implements a voltage-mode control architecture with the switching frequency fixed at either 300 kHz. The higher switching frequency facilitates the use of smaller inductor and output capacitors, thereby providing a compact power-supply solution. An adaptive anti-cross conduction scheme is used to prevent shoot through current in the power FETs. The applications of the TPS40192DRCR include Cable Modem CPE, Digital Set Top Box, Graphics/Audio Cards, Entry Level and Mid-Range Servers.

Parametrics

TPS40192DRCR absolute maximum ratings: (1)VDD, ENABLE: –0.3 to 20V; (2)SW: –5 to 25V; (3)BOOT, HDRV: –0.3 to 30V; (4)BOOT-SW, HDRV-SW (differential from BOOT or HDRV to SW): -0.3 to 6V; (5)COMP, FB, BP5, LDRV, PGD: –0.3 to 6V; (6)TJ Operating junction temperature range:–40 to 150℃; (7)Tstg Storage temperature:–55 to 150℃.

Features

TPS40192DRCR features: (1)Input Operating Voltage Range: 4.5V to 18V; (2)Up to 20 A Output Currents; (3)Supports Pre-Biased Outputs; (4)0.5% 0.591 V Reference; (5)600 kHz (TPS40192) and 300 kHz (TPS40193) Switching Frequencies; (6)Three Selectable Thermally Compensated Short Circuit Protection Levels; (7)Hiccup Restart from Faults; (8)Internal 5-V Regulator; (9)High and Low side FET RDSON Current Sensing; (10)10-Pin 3 mm×3 mm SON Package; (11)Internal 4-ms Soft-Start Time; (12)Thermal Shutdown Protection at 145℃.

Diagrams

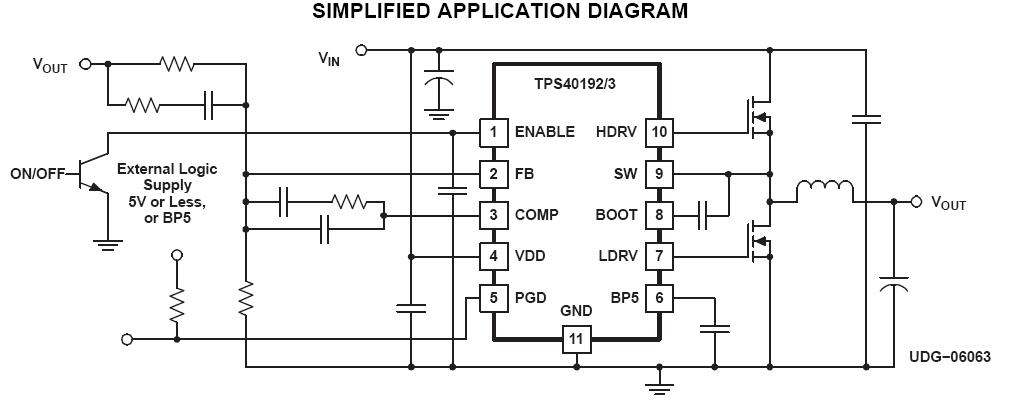

TPS40192DRCR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TPS40192DRCR
TPS40192DRCR
Texas Instruments
DC/DC Switching Controllers 4.5V-8V Input Synch Buck Contr
Data Sheet
0-1: $1.57
1-25: $1.29
25-100: $1.16
100-250: $1.07
TPS40192DRCRG4
TPS40192DRCRG4
Texas Instruments
DC/DC Switching Controllers 4.5V-18V Input Synch Buck Cntrlr
Data Sheet
0-2220: $0.85
2220-3000: $0.82
3000-6000: $0.79
