Product Summary
The TPS2501DRCR is an Integrated USB power switch with boost converter. The TPS2501DRCR provides an integrated solution to meet USB 5-V power requirements from a 1.8-V to 5.25-V input supply. The features include a Hi-Speed USB compliant power output, output switch enable, current limit, and overcurrent fault porting. The 1.8-V to 5.25-V input can be supplied by sources including dc/dc regulated supplies (e.g., 3.3 V), or batteries such as single-cell Li+ or three-cell NiCd, NiMH, or alkaline. The USB power-switch current limit is programmable via an external resistor from as low as 130 mA to as high as 1400 mA (typical). Two standard USB ports can be supported from a single TPS2500 or at the 1400-mA setting.
Parametrics
TPS2501DRCR absoluete maximum ratings: (1)Input voltage range on SW, AUX, IN, USB, ENUSB, EN, FAULT, ILIM: –0.3 to 7 V; (2)FAULT sink current: 25 mA; (3)ILIM source current: 1 mA; (4)TJ Junction temperature range: –40℃ to 150℃; (5)ESD – HBM: 2 kV; (6)ESD – CDM: 500 V; (7)ESD – system level (contact/air): 8/15 kV.
Features
TPS2501DRCR features: (1)Integrated Synchronous Boost Converter and USB Current-Limit Power Switch; (2)Light-Load, High-Efficiency Eco-mode Control Scheme (TPS2500) or Constant Frequency; (3)1.8-V to 5.25-V Input Voltage (2.2-V Minimum Start-Up Voltage); (4)Adjustable USB Current Limit – 130 mA to 1400 mA (Typical); (5)Accurate 20% Current Limit at 1.4-A Setting; (6)Powers up to Two Standard USB Ports; (7)Auxiliary 5.1-V Output; (8)Minimal External Components Required; (9)Fast Overcurrent-Response Time – 5 μs Typical; (10)Small 3-mm × 3-mm × 0.9-mm SON-10 Package; (11)15-kV / 8-kV System-Level ESD Capable.

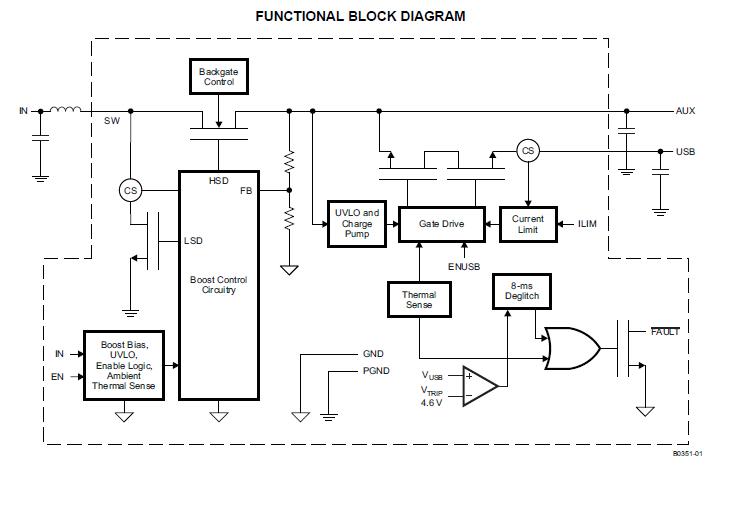

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TPS2501DRCR |
Texas Instruments |
Power Switch ICs - USB Integr USB Pwr Sw |
Data Sheet |
|
|
||||||||||||
