Product Summary

The TPS2376DDA-H is an IEEE 802.3 af PoE high power PD controller. The TPS2376DDA-H offers a higher current limit and increased thermal dissipation capability over the TPS237X family of devices. Applications of the TPS2376DDA-H include: VoIP Video and Speaker Phones, WiMAX Access Points, Security Cameras and RFID Readers.

Parametrics

TPS2376DDA-H absolute maximum ratings: (1) (2) VDD, RTN , DET, PG: -0.3 to 100V, (2) ILIM, UVLO: -0.3 to 10V, (3) CLASS: -0.3 to 12V; (4) RTN: Internally Limited; (5) PG: 0 to 5mA; (6) DET: 0 to 1mA; (7) Human body mode ESD: 2kV; (8) Maximum junction temperature range Tj: Internally limited; (9) Storage temperature range Tstg: -65 to 150°C; (10) Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260°C.

Features

TPS2376DDA-H features: (1) Adjustable Turn-on Thresholds; (2) Permits high-power 26 W designs; (3) Integrated 0.58-Ω, 100-V, Low-Side Switch; (4) 15-kV System Level ESD Capable; (5)Industrial Temperature Range: -40 to 85°C; (6) 8-Pin PowerPad? SOIC Package.

Diagrams

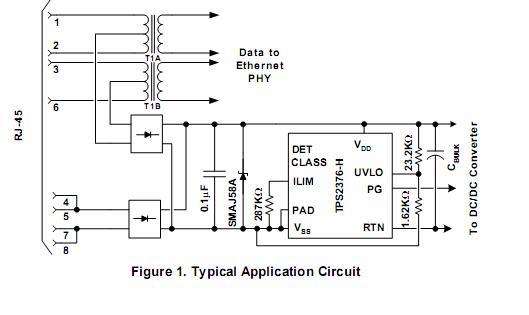

TPS2376DDA-H Application Circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TPS2376DDA-H
TPS2376DDA-H
Texas Instruments
Hot Swap & Power Distribution IEEE 802.3af PoE High Power PD Cont
Data Sheet
0-1: $2.21
1-25: $2.02
25-100: $1.62
100-250: $1.41
TPS2376DDA-HG4
TPS2376DDA-HG4
Texas Instruments
Hot Swap & Power Distribution IEEE 802.3af PoE High Power PD Cont
Data Sheet
0-1: $2.02
1-25: $1.62
25-100: $1.26
100-250: $1.19
