Product Summary

The TMS320F2802PZA is a Digital Signal Processor. It is a highly integrated, high-performance solution for demanding control applications. UCD9501 is a member of the same device family specifically targeting power management control applications. Throughout this document, the TMS320F2802PZA is abbreviated as F2809, F2808, F2806, F2802, F2801/9501, C2802, and C2801, respectively. The TMS320F2802PZA references guides, flash tools, and other collateral are applicable to the UCD9501 device as well.

Parametrics

TMS320F2802PZA absolute maximum ratings: (1)Supply voltage range, VDDIO, VDD3VFL with respect to VSS: - 0.3 V to 4.6 V; (2)Supply voltage range, VDDA2, VDDAIO with respect to VSSA: - 0.3 V to 4.6 V; (3)Supply voltage range, VDD with respect to VSS: - 0.3 V to 2.5 V; (4)Supply voltage range, VDD1A18, VDD2A18 with respect to VSSA: - 0.3 V to 2.5 V; (5)Supply voltage range, VSSA2, VSSAIO, VSS1AGND, VSS2AGND with respect to VSS: - 0.3 V to 0.3 V; (6)Input voltage range, VIN: - 0.3 V to 4.6 V; (7)Output voltage range, VO: - 0.3 V to 4.6 V; (8)Input clamp current, IIK (VIN＜0 or VIN＞VDDIO)(3): ± 20 mA; (9)Output clamp current, IOK (VO＜0 or VO＞VDDIO): ± 20 mA; (10)Operating ambient temperature ranges, TA: A version (GGM, PZ): - 40 to 85℃; (11)TA: S version (GGM, PZ)(4): - 40℃ to 125℃; (12)TA: Q version ( PZ)(4): - 40℃ to 125℃; (13)Junction temperature range, Tj(4): - 40 to 150℃; (14)Storage temperature range, Tstg(4): - 65 to 150℃.

Features

TMS320F2802PZA features: (1)High-Performance Static CMOS Technology; (2)JTAG Boundary Scan Support; (3)High-Performance 32-Bit CPU (TMS320C28x); (4)On-Chip Memory; (5)Clock and System Control; (6)128-Bit Security Key/Lock; (7)Enhanced Control Peripherals; (8)Three 32-Bit CPU Timers; (9)Serial Port Peripherals; (10)12-Bit ADC, 16 Channels; (11)Low-Power Modes and Power Savings.

Diagrams

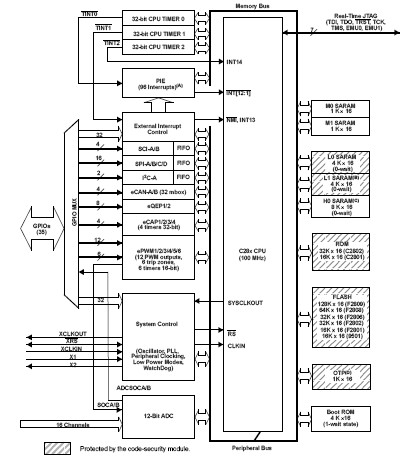

TMS320F2802PZA block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TMS320F2802PZA
TMS320F2802PZA
Texas Instruments
Digital Signal Processors & Controllers (DSP, DSC) 32-Bit Digital Sig Controller w/Flash
Data Sheet
0-1: $8.15
1-25: $7.24
25-100: $5.92
100-250: $5.80
TMS320F2802PZA-60
TMS320F2802PZA-60
Texas Instruments
Digital Signal Processors & Controllers (DSP, DSC) 32B Dig Signal Controller
Data Sheet
0-1: $6.33
1-25: $5.33
25-100: $4.90
100-250: $4.46
