Product Summary
The TMS320C6678CYP is a highest-performance fixed/floating-point DSP that is based on TIs KeyStone multicore architecture. Integrated with the new and innovative C66x DSP core, this device can run at a core speed of up to 1.25 GHz. For developers of a broad range of applications, such as mission critical, medical imaging, test and automation and other applications requiring high performance, The TMS320C6678CYP offers 10 GHz cumulative DSP and enables a platform that is power efficient and easy to use. In addition, it is fully backward compatible with all existing C6000 family of fixed and floating point DSPs.
Parametrics
TMS320C6678CYP absolute maximum ratings: (1)Operating case temperature range, TC: Commercial: 0°C to 85°C, Extended: -40°C to 100°C; (2)DDR3 I2C Storage temperature range, Tstg: -65°C to 150°C; (3)VDDAx PLL analog supply: 1.71 to 1.89 V; (4)IOZ [DC] LVCMOS (1.8 V): -2 to 2 μA.
Features
TMS320C6678CYP features: (1)4096 KB MSM SRAM Memory Shared by Eight DSP C66x CorePacs; (2)Memory Protection Unit for Both MSM SRAM and DDR3_EMIF; (3)8192 Multipurpose Hardware Queues with Queue Manager; (4)Packet-Based DMA for Zero-Overhead Transfers; (5)UART Interface; (6)I2C Interface; (7)16 GPIO Pins; (8)SPI Interface; (9)Semaphore Module; (10)Sixteen 64-Bit Timers; (11)Three On-Chip PLLs.

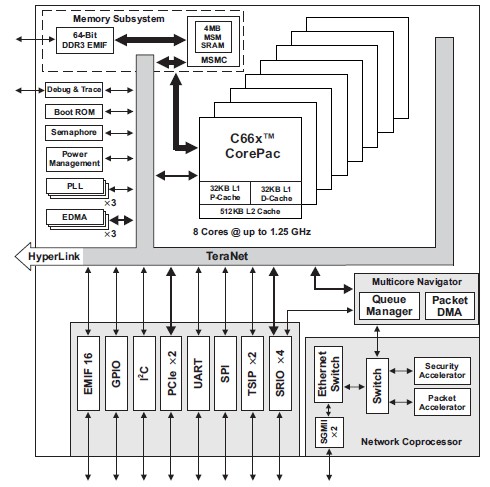

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TMS320C6678CYP |
Texas Instruments |
Digital Signal Processors & Controllers (DSP, DSC) MULTICORE FIXED & FL PT DIG SIG PROC |
Data Sheet |
|
|
||||||||
|
TMS320C6678CYP25 |
Texas Instruments |
Digital Signal Processors & Controllers (DSP, DSC) MULTICORE FIXED & FL PT DIG SIG PROC |
Data Sheet |
|
|
||||||||
|
TMS320C6678CYPA |
Texas Instruments |
Digital Signal Processors & Controllers (DSP, DSC) MULTICORE FIXED & FL PT DIG SIG PROC |
Data Sheet |
|
|
||||||||
