Product Summary

The TMP411ADGKR is a remote temperature sensor monitor with a built-in local temperature sensor. The TMP411ADGKR is available in both MSOP-8 and SO-8 (available Q1 2007) packages. Applications of the TMP411ADGK include: LCD/DLP/LCOS projectors, servers, industrial controllers, central office telecom equipment, desktop and notebook computers and processor,FPGA temperature monitoring.

Parametrics

TMP411ADGKR absolute maximum ratings: (1) Power Supply, VS: 7V; (2) Input Voltage, pins 2, 3, 4 only: -0.5 to Vs +0.5V; (3) Input Voltage, pins 6, 7, 8 only: -0.5 to 7V; (4) Input Current: 10mA; (5) Operating Temperature Range: -55 to +127°C; (6) Storage Temperature Range: -60 to +130°C; (7) Junction Temperature (Tjmax) : +150°C.

Features

TMP411ADGKR features: (1) ±1°C remote diode sensor; (2) ±1°C local temperature sensor; (3) programmable non-ideality factor; (4) series resistancce cancellation; (5) alert function; (6) programmable resolution: 9 to 12 bits; (7) multiple interface addresses; (8) diode fault defection.

Diagrams

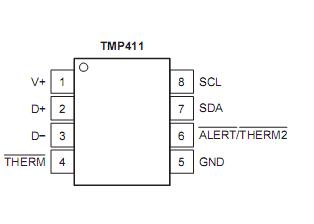

TMP411ADGKR Pin Configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TMP411ADGKR
TMP411ADGKR
Texas Instruments
Board Mount Temperature Sensors +/-1degC Remote and Local
Data Sheet
0-1: $0.82
1-25: $0.65
25-100: $0.57
100-250: $0.50
TMP411ADGKRG4
TMP411ADGKRG4
Texas Instruments
Board Mount Temperature Sensors +/-1degC Remote and Local
Data Sheet
0-1730: $0.33
1730-2000: $0.30
2000-2500: $0.30
2500-5000: $0.29
