Product Summary

The TLV70033DDCR is a Low-IQ, low-dropout regulator for portable devices. The TLV70033DDCR is designed for power-sensitive applications. Applications of the TLV70033DDCR include: Wireless Handsets, SmartPhones, PDAs, MP3 Players, ZigBee Networks, Bluetooth Devices, Li-Ion perated Handheld Products and WLAN and Other PCAdd-on Cards.

Parametrics

TLV70033DDCR absolute maximum ratings: (1) Input voltage range, VIN: -0.3 to +6.0V; (2) Enable voltage range, VEN: -0.3 to +6.0V; (3) Output voltage range, VOUT: -0.3 to +6.0V; (4) Maximum output current, IOUT: Indefinite; (5) ESD rating: 2Kv (Human body model (HBM)) , 500V (Charge ddevice model (CDM) ) ; (6) Charged device mode Operatingjunction temperature range, Tj: -55 to +150°C; (7) Storagetemperature range, TSTG: -55 to +150°C.

Features

TLV70033DDCR features: (1) Very Low Dropout; (2) 2% Accuracy; (3) Available in Fixed-Output Voltages from 0.7V to 4.8V; (4) High PSRR: 68dB at 1kHz; (5) Thermal Shutdow nandOver current Protection; (5) Availablein 1,5-mm×1,5-mm SON-6, SOT23-5, and SC-70 packages.

Diagrams

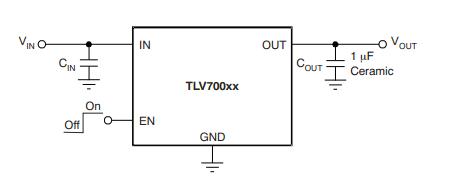

TLV70033DDCR Circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TLV70033DDCR
TLV70033DDCR
Texas Instruments
Low Dropout (LDO) Regulators 200mA Low IQ LDO Reg for Portables
Data Sheet
0-1: $0.31
1-25: $0.23
25-100: $0.19
100-250: $0.17
