Product Summary

The TLV1543CDB is a 3.3V 10-bit analog-to-digtal converter with serial control ans 11 analog inputs. The TLV1543CDB allows high-speed data transfers from the host. The TLV1543CDB is characterized for operation from 0 to 70°C.

Parametrics

TLV1543CDB absolute maximum ratings: (1) Input voltage range, VI (any input) : -0.5 to 6.5V; (2) Output voltage range, VO: -0.5 to 6V; (3) Positive reference voltage, Vref+: -0.3 to Vcc +0.3V; (4) Negative reference voltage, Vref-: vCC +0.1v; (5) Peak input current (any input: ±20mA; (6) Peak total input current (all inputs) : ±30mA; (7) Storage temperature range, Tstg: -55 to 125°C; (8) Lead temperature 1,6 mm (1/16 inch) from the case for 10 seconds: 260°C.

Features

TLV1543CDB features: (1) 3.3-V Supply Operation; (2) 10-Bit-Resolution A/D Converter; (3) 11 Analog Input Channels; (4) Three Built-In Self-Test Modes; (5) Inherent Sample and Hold; (6) Total Unadjusted Error: ± 1LSB max; (7) On-Chip System Clock; (8) End-of-Conversion (EOC) Output; (9) Pin Compatible With TLC1543; (10) CMOS Technology.

Diagrams

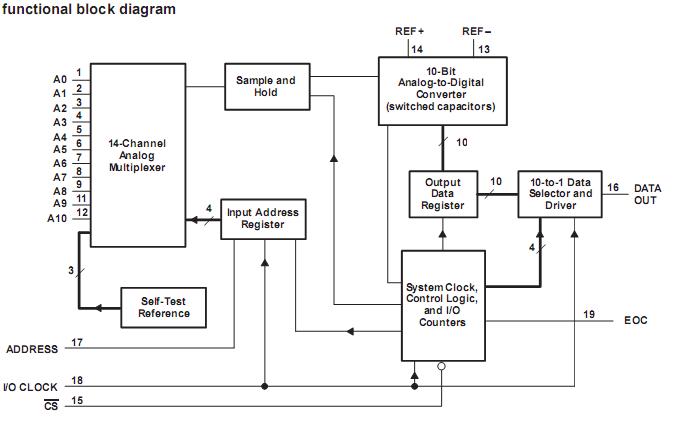

TLV1543CDB Diagram Circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TLV1543CDB
TLV1543CDB
Texas Instruments
ADC (A/D Converters) High Speed A/D
Data Sheet
0-1: $3.37
1-25: $3.06
25-100: $2.06
100-250: $2.02
TLV1543CDBG4
TLV1543CDBG4
Texas Instruments
ADC (A/D Converters) 10-Bit 200 kSPS Serial Out
Data Sheet
0-1: $2.93
1-25: $2.66
25-100: $2.06
100-250: $1.96
TLV1543CDBR
TLV1543CDBR
Texas Instruments
ADC (A/D Converters) 10-Bit 200 kSPS Serial Out
Data Sheet
0-1565: $1.57
1565-2000: $1.55
TLV1543CDBRG4
TLV1543CDBRG4
Texas Instruments
ADC (A/D Converters) 10-Bit 200 kSPS Serial Out
Data Sheet
0-1565: $1.57
1565-2000: $1.55
