TLK2201BIRCP

TLK2201BIRCP, transceiver, 3 V, 1 kV, 200 mV, 0.25 μm, QFP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1001 ~ 10000 :	0.40 / Piece
10001 ~ 100000 :	0.30 / Piece

PartNumber:: TLK2201BIRCP

Brand:: Texas Instruments - TI | Pack: QFP | D/C: 12+

Availability:: Supply Ability: 100000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-17

From Other Seller

Part Number:TLK2201BIRCP
US $0.30 - 0.50
Quantity:

piece

Product Summary

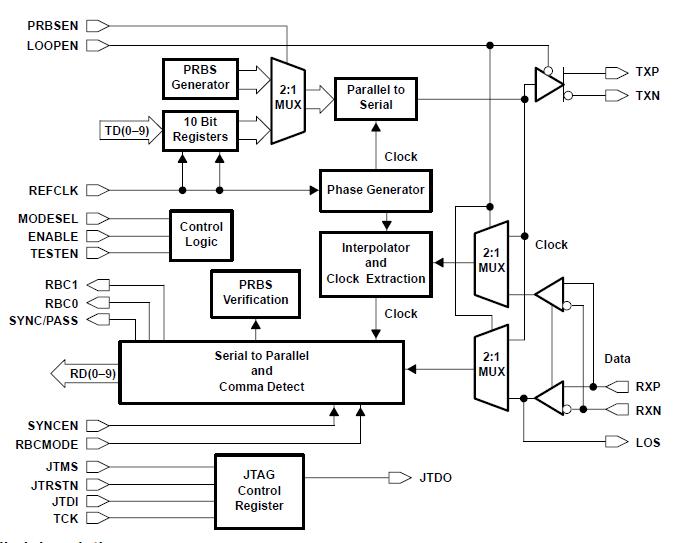

The TLK2201BIRCP is a gigabit ethernet transceiver provides for ultrahigh-speed full-duplex point-to-point data transmissions. The TLK2201BIRCP is based on the timing requirements of the 10-bit interface specification by the IEEE 802.3 Gigabit Ethernet specification. The device supports data rates from 1.0Gbps through 1.6 Gbps and the device supports data rates from 1.2 Gbps through 1.6 Gbps. The primary application of the TLK2201BIRCP is to provide building blocks for point-to-point baseband data transmission over controlled impedance media of 50 Ω or 75 Ω.

Parametrics

TLK2201BIRCP absolute maximum ratings: (1)Supply voltage, VDD (see Note 1): -0.3 V to 3 V; (2)Input voltage range at TTL terminals, VI: -0.5 V to 4 V; (3)Input voltage range at any other terminal: -0.3 V to VDD +0.3 V; (4)Storage temperature, Tstg: -65℃ to 150℃; (5)Electrostatic discharge: CDM: 1 kV, HBM: 2 kV; (6)Characterized free-air operating temperature range: 0℃ to 70℃.

Features

TLK2201BIRCP features: (1)1 to 1.6 Gigabits Per Second (Gbps) Serializer/Deserializer (TLK2201A); (2)1.2 to 1.6 Gigabits Per Second (Gbps) Serializer/Deserializer (TLK2201AI); (3)Low Power Consumption <200 mW at 1.25 Gbps; (4)LVPECL Compatible Differential I/O on High Speed Interface; (5)Single Monolithic PLL Design; (6)Support For 10 Bit Interface or Reduced Interface 5 Bit DDR (Double Data Rate) Clocking; (7)Receiver Differential Input Thresholds 200 mV Minimum; (8)Industrial Temperature Range From -40℃ to 85℃ (TLK2201AI); (9)IEEE 802.3 Gigabit Ethernet Compliant; (10)Advanced 0.25 μm CMOS Technology; (11)No External Filter Capacitors Required; (12)Comprehensive Suite of Built-In Testability; (13)IEEE 1149.1 JTAG Support; (14)2.5-V Supply Voltage for Lowest Power Operation; (15)3.3-V Tolerant on LVTTL Inputs; (16)Hot Plug Protection; (17)64-Pin VQFP With Thermally Enhanced Package (PowerPAD).
