TLE4207G

TLE4207G, Dual-Half-Bridge-Driver, 45 V, 0.8 A, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1001 ~ 10000 :	0.40 / Piece
10001 ~ 100000 :	0.30 / Piece

PartNumber:: TLE4207G

Brand:: Infineon Technologies AG - Infineon | Pack: SOP | D/C: 13+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-31

From Other Seller

Part Number:TLE4207G
US $0.30 - 0.50
Quantity:

piece

Product Summary

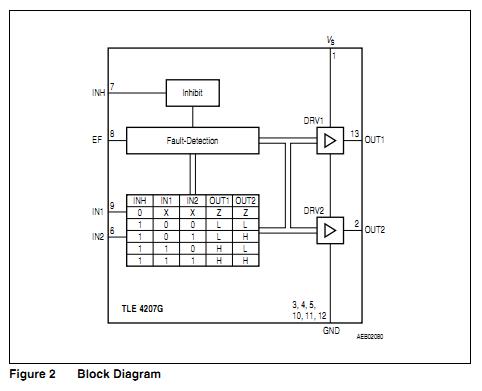

The TLE4207G is a protected Dual-Half-Bridge-Driver designed specially for automotive and industrial motion control applications. The TLE4207G is built using the Infineon bipolar high voltage power technology DOPL. The actuator (DC motor) can be connected direct between the halfbridges. Operation modes forward (cw), reverse (ccw), brake and high impedance are invoked from a standard interface. The standard enhanced power PG-DSO-14-22 package of the TLE4207G meets the application requirements and saves PCB-board space and costs.

Parametrics

TLE4207G absolute maximum ratings: (1)Supply voltage, VS: –0.3 to 45 V; (2)Supply voltage, VS: –1V; (3)Logic input voltages (IN1; IN2; INH), VI:–5 to 20 V; (4)Logic output voltage (EF), VEF: –0.3 to 20 V.

Features

TLE4207G features: (1)Delivers up to 0.8 A continuous; (2)Optimized for DC motor management applications; (3)Very low current consumption in stand-by (Inhibit) mode; (4)Low saturation voltage; typ.1.2 V total @ 25℃; 0.4 A; (5)Output protected against short circuit; (6)Error flag diagnosis; (7)Overvoltage lockout and diagnosis; (8)Undervoltage lockout; (9)CMOS/TTL compatible inputs with hysteresis; (10)No crossover current; (11)Internal clamp diodes; (12)Overtemperature protection with hysteresis and diagnosis; (13)Enhanced power PG-DSO-Package; (14)Green Product (RoHS compliant); (15)AEC Qualified.
