TL431BIDR2G

three−terminal programmable shunt regulator diode, 3.0W, 150 mA, SOIC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.15 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.15 / Piece
1000 ~ 10000 :	0.12 / Piece
10000 ~ 100000 :	0.10 / Piece

PartNumber:: TL431BIDR2G

Brand:: ON Semiconductor - ON | Pack: SOP | D/C: 13+

Availability:: Supply Ability: 100000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-30

From Other Seller

Part Number:TL431BIDR2G
US $0.10 - 0.15
Quantity:

piece

Product Summary

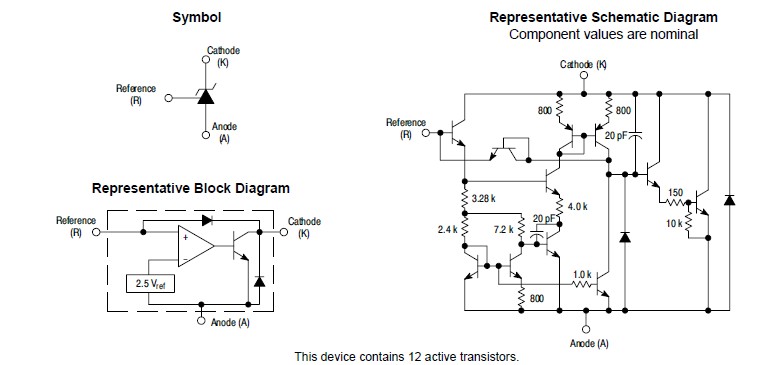

The TL431BIDR2G integrated circuit is a three-terminal programmable shunt regulator diode. The TL431BIDR2G voltage references operate as a low temperature coefficient zener which is programmable from Vref to 36 V with two external resistors. The TL431BIDR2G exhibitS a wide operating current range of 1.0 mA to 100 mA with a typical dynamic impedance of 0.22. The characteristics of these references make them excellent replacements for zener diodes in many applications such as digital voltmeters, power supplies, and op amp circuitry. The 2.5 V reference makes it convenient to obtain a stable reference from 5.0 V logic supplies, and since the TL431, A, B operates as a shunt regulator, it can be used as either a positive or negative voltage reference.

Parametrics

TL431BIDR2G absolute maximum ratings: (1)Cathode to Anode Voltage VKA: 37 V; (2)Cathode Current Range, Continuous IK: 100 to +150 mA; (3)Reference Input Current Range, Continuous Iref: 0.05 to +10 mA; (4)Operating Junction Temperature TJ: 150 °C; (5)Operating Ambient Temperature Range TA: 40 to +85°C; (6)Storage Temperature Range Tstg 65 to +150 °C; (7)Total Power Dissipation @ TA = 25°C PD: Derate above 25°C Ambient Temperature D, LP Suffix Plastic Package 0.70W, P Suffix Plastic Package 1.10W, DM Suffix Plastic Package 0.52W; (8)Total Power Dissipation @ TC = 25°C PD: Derate above 25°C Case Temperature D, LP Suffix Plastic Package 1.5W, P Suffix Plastic Package 3.0W.

Features

TL431BIDR2G features: (1)Programmable Output Voltage to 36 V; (2)Voltage Reference Tolerance: ±0.4%, Typ @ 25°C (TL431B); (3)Low Dynamic Output Impedance, 0.22 Typical; (4)Sink Current Capability of 1.0 mA to 100 mA; (5)Equivalent Full−Range Temperature Coefficient of 50 ppm/°C Typical; (6)Temperature Compensated for Operation over Full Rated Operating Temperature Range; (7)Low Output Noise Voltage; (8)Pb−Free Packages are Available.
