Product Summary

The TL082CDR is a JFET-INPUT operational amplifer. The TL082CDR is designed to offer a wider selection than any previously developed operational amplifier family. The TL082CDR features high slew rates, low input bias and offset currents, and low offset-voltage temperature coefficient. The TL082CDR is characterized for operation from 0 to 70°C.

Parametrics

TL082CDR absolute maximum ratings: (1)Supply voltage, Vcc+: 18V; (2) Supply voltage, Vcc-: -18V; (3) Differential input voltage, VID: ±30V; (4) Input voltage, VI: ±15V; (5) Duration of output short circuit: Unlimited; (6) Operating free-air temperature range, TA: 0 to 70°C; (7) Operating virtual junction temperature: 150°C; (8) Storage temperature range, Tstg: -65 to 150°C.

Features

TL082CDR features: (1)Low Power Consumption; (2) Wide Common-Mode and Differential Voltage Ranges; (3) Low Input Bias and Offset Currents; (4) Output Short-Circuit Protection; (5) Low Total Harmonic Distortion: 0.003% Typ; (6) Latch-Up-Free Operation; (7) High Slew Rate: 13V/μs; (8) Common-Mode Input Voltage Range Includes VCC+.

Diagrams

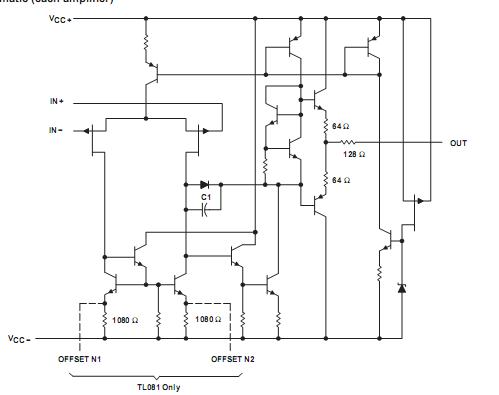

TL082CDR Circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TL082CDR
TL082CDR
Texas Instruments
Operational Amplifiers - Op Amps Dual JFET Op Amp
Data Sheet
0-1: $0.29
1-25: $0.20
25-100: $0.17
100-250: $0.15
TL082CDRE4
TL082CDRE4
Texas Instruments
Operational Amplifiers - Op Amps Dual JFET-Input
Data Sheet
0-1: $0.42
1-25: $0.33
25-100: $0.29
100-250: $0.25
TL082CDRG4
TL082CDRG4
Texas Instruments
Operational Amplifiers - Op Amps Dual JFET-Input
Data Sheet
0-1: $0.42
1-25: $0.33
25-100: $0.29
100-250: $0.25
