Product Summary
The TL074MJB is a JFET-input operational amplifier. The TL074MJB similar to the TL08x series, with low input bias and offset currents and fast slew rate. The low harmonic distortion and low noise make the TL074MJB ideally suited for high-fidelity and audio preamplifier applications. Each amplifier features JFET inputs (for high input impedance) coupled with bipolar output stages integrated on a single monolithic chip.
Parametrics
TL074MJB absolute maximum ratings: (1)Supply voltage (see Note 1): VCC+: 18 V; (2)VCC: 18 V; (3)Differential input voltage, VID (see Note 2): ±30 V; (4)Input voltage, VI (see Notes 1 and 3): ±15 V; (5)Duration of output short circuit (see Note 4): Unlimited; (6)Package thermal impedance, θJA (see Notes 5 and 6):97℃/W; (7)Operating virtual junction temperature, TJ: 150; (8)Case temperature for 60 seconds: FK package: 260℃; (9)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: J, JG, or W package: 300℃; (10)Storage temperature range, Tstg: -65 to 150℃.
Features
TL074MJB features: (1)Low Power Consumption; (2)Wide Common-Mode and Differential Voltage Ranges; (3)Low Input Bias and Offset Currents; (4)Output Short-Circuit Protection; (5)Low Total Harmonic Distortion: 0.003% Typ; (6)High Input Impedance: JFET Input Stage; (7)Internal Frequency Compensation; (8)Latch-Up-Free Operation; (9)High Slew Rate: 13 V/μs Typ; (10)Common-Mode Input Voltage Range Includes VCC+.

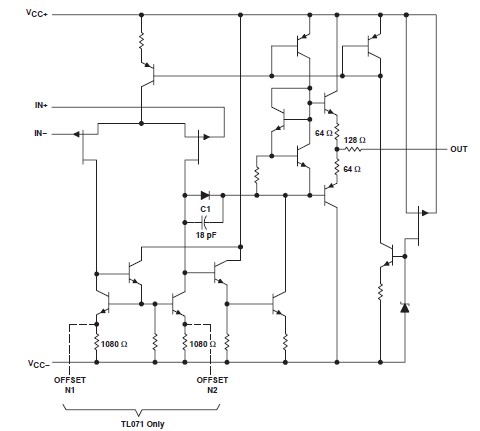

Diagrams
