Product Summary
The TL02S is a dual low-power operational amplifier designed to replace higher power devices in many applications without sacrificing system performance. High input impedance, low supply currents, and low equivalent input noise voltage over a wide range of operating supply voltages result in an extremely versatile operational amplifier for use in a variety of analog applications including battery-operated circuits. The TL02S is characterized for operation from 0℃ to 70℃.
Parametrics
TL02S absolute maximum ratings: (1)Supply voltage, VCC+ (see Note 1): 18V; (2)Supply voltage, VCC– (see Note 1): -18V; (3)Differential input voltage (see Note 2): ±30 V; (4)Input voltage (any input, see Notes 1 and 3): ±15V; (5)Duration of output short circuit (see Note 4): unlimited; (6)Continuous total dissipation: See Dissipation Rating Table; (7)Operating free-air temperature range: 0 to 70℃; (8)Storage temperature range: -65 to 150℃; (9)Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds JG or U package: 300℃; (10)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds D or P package: 260℃.
Features
TL02S features: (1)Very Low Power Consumption; (2)Power Dissipation With ±2-V Supplies 170 mW Typ; (3)Low Input Bias and Offset Currents; (4)Output Short-Circuit Protection; (5)Low Input Offset Voltage; (6)Internal Frequency Compensation; (7)Latch-Up-Free Operation; (8)Popular Dual Operational Amplifier Pinout TL022M IS not recommended for new designs.

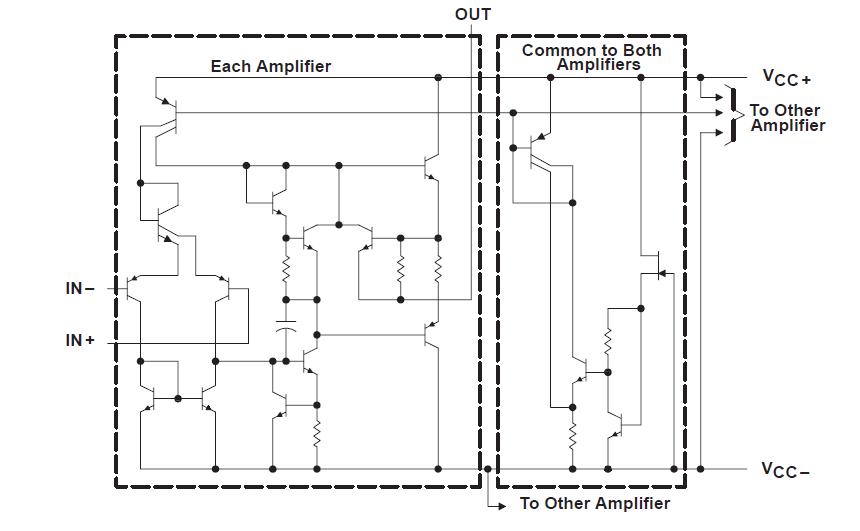

Diagrams
