Product Summary

The THS7316D is a 3-Channel HDTV Video Amplifier With 5-Order Filters and 6-dB Gain. It incorporates a 5th-order modified Butterworth filter which is useful as a DAC reconstruction filter or an ADC anti-aliasing filter. As part of the THS7316D flexibility, the input can be configured for ac or dc coupled inputs. The applications of the THS7316D include: Set Top Box Output Video Buffering, PVR/DVDR Output Buffering, USB/Portable Low Power Video Buffering.

Parametrics

THS7316D absolute maximum ratings: (1)Supply voltage, VS+ to GND: 5.5 V; (2)VI Input voltage: – 0.4 V to VS+ V; (3)IO Output current: ±90 mA; (4)TJ Maximum junction temperature, any condition: 150 ℃; (5)TJ Maximum junction temperature, continuous operation, long term reliability: 125 ℃; (6)Tstg Storage temperature range: –65 to 150 ℃.

Features

THS7316D features: (1)Built-in 6-dB Gain (2V/V); (2)3-V to 5-V Single Supply Operation; (3)Rail-to-Rail Output: Output Swings Within 100 mV From the Rails Allowing AC or DC Output Coupling, Supports Driving 2 Lines per Channel; (4)Low 18.3-mA at 3.3-V Total Quiescent Current; (5)Low Differential Gain/Phase of 0.1% / 0.1°; (6)SOIC-8 Package.

Diagrams

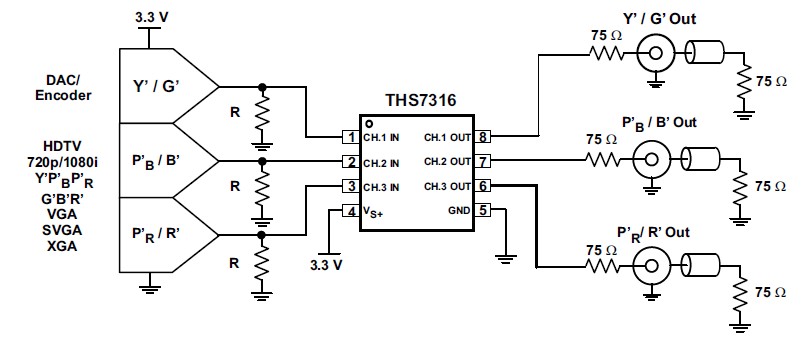

THS7316D pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
THS7316D
THS7316D
Texas Instruments
Video Amplifiers 3-Ch HDTV Video Amp
Data Sheet
0-1: $0.98
1-25: $0.90
25-100: $0.81
100-250: $0.72
THS7316DG4
THS7316DG4
Texas Instruments
Video Amplifiers 3-Ch HDTV Video Amp
Data Sheet
0-1: $1.13
1-25: $0.95
25-100: $0.82
100-250: $0.68
THS7316DR
THS7316DR
Texas Instruments
Video Amplifiers 3-Ch HDTV Video Amp
Data Sheet
0-1: $0.92
1-25: $0.74
25-100: $0.68
100-250: $0.61
THS7316DRG4
THS7316DRG4
Texas Instruments
Video Amplifiers 3-Ch HDTV Video Amp
Data Sheet
0-1790: $0.46
1790-2000: $0.44
2000-2500: $0.44
2500-5000: $0.42
